Pilz

570817

Name: 570817
Brand: Pilz
Availability: PreOrder

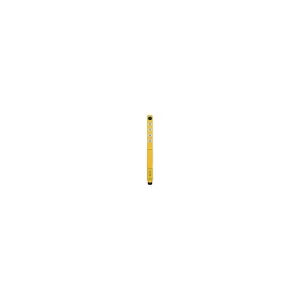

Product type: PSEN sg2c-5LPLLS switch

Datasheet

Description

Safety gate system 2. generation, safe interlock with safe guard locking, in accordance with EN 6094753, for applications upto SIL CL 3 and PL e. Consisting of 5 elements: 1. Illuminated pushbutton for activating the safety gate, 2. Pushbutton for access and release of the safety gate, 3.Illuminated pushbutton, 4. Illuminated pushbutton, 5. Section stop pushbutton. Scope of supply: Sensing devicewith pushbuttons (spare).

Sensor technology
Safety gate systems
PSENsgate - safety gate system
PSENsgate

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 570817.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.18 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	46.5x555x74.5 mm
EAN code
Product group	7048
cas no.	7439-92-1 1317-36-8
approval	CE cULus Listed FCC TÜV
unit type	Sensor
cable lines	LiYY 24 x 0.5 mm2
etim version	ETIM-7.0
gross weight	1270
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
connection type	Pluggable spring terminal
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	yes
type 1 actuator	PSEN sg2 actuator
number of inputs	2
reach compliance	contains min. 1 SVHC-substance
sensor principle	Transponder
material actuator	Stainless steel
supply voltage (v)	24 24
transponder coding	coded
ambient temperature	-20 55
emc to standard ...	EN 55011: Class A EN 61000-4-8 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
operating frequency	122 kHz - 128 kHz
etim reference group	EG000026
overvoltage category	III
power consumption dc	2
number of ossd outputs	2
number of sig. outputs	2
%-part of the pollutant	> 0,1%
acc. shock to standard1	30g
contact material button	AgNi
eclass reference feature	27272603
escape release available	Yes
coding level to iso 14119	Low
reach included substances	Lead Lead oxide
release type section stop	Turn release
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
holding force pan direction	2000
housing material upper part	Plastic
ambient temperature standard	EN 60068-2-14
change op. dist. temp.change	+-0.01mm/°C
storage temperature standard	EN 60068-2-1/-2
u input to en 61131-2 type 2	24 V DC
climatic suitability standard	EN 60068-2-78
rohs except.s acc. to direct.	7a 6c 7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
holding force, closing movemen	1000
pollution degree clear.&creep.	3
s/c output short circuit proof	Yes
suitable for series connection	yes
switch cap. button to standard	EN 60947-5-1
