Pilz

583000

Name: 583000
Brand: Pilz
Availability: PreOrder

Product type: PSENvip RL D Set

Datasheet

Description

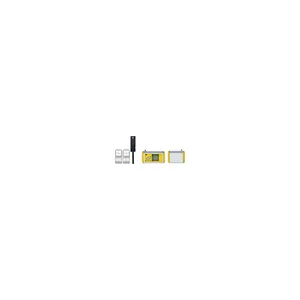

PSENvip, camera system, failsafe, PL e, SIL CL 3, application range IEC 61496-1/-2, EN 12622, IEC 61508, camera-based protection system with integral overrun measurement, for use with PSS and PNOZmulti, Complete set consists of PSENvip RL D (receiver with display), PSENvip T (transmitter), PSENvip TP (test piece), PSENvip AP (set of adjustmentplates for transmitter/receiver), PSENvip AT mag (set of adjustment plates withmagnets).

Sensor technology
Safe camera systems
PSENvip - camera-based protection system
PSENvip

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 583000.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	6.88 KG / psc.
Commodity number	85437090
Country of origin	DE
Dimensions (WxHxD)	380x420x230 mm
EAN code
Product group	7043
approval	CE cULus Listed TÜV
espe type	4
cable lines	Cable sets
etim version	ETIM-7.0
gross weight	6880 g
reaction time	4 ms
eclass version	ECLASS-9.1
connection type	M12
humidity rating	93 % r. h. at 40 °C
number of inputs	7
sensor principle	optical
max. cable length	75 m
supply voltage (v)	24 V
ambient temperature	0 - 50 °C
dc voltage at input	24 V DC
emc to standard ...	EN 61496-1 EN 61000-6-4
operating range (m)	0.1 - 10 m
power consumption dc	55 W
used wavelength range	510 - 550 nm
number of ossd outputs	2
acc. shock to standard1	10g
condensation permitted?	Not permitted
eclass reference feature	27310101
protection type standard	EN 60529
potential isolation s/c o	No
switch-on delay time ossd	0 - 2 s
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
potential isolation inputs	No
resolution protection type	Finger
housing material upper part	Aluminium
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
max. width of the detect. zone	42 mm
s/c output short circuit proof	Yes
