Pilz

583601

Name: 583601
Brand: Pilz
Availability: PreOrder

Product type: PSENvip RL D P

Datasheet

Description

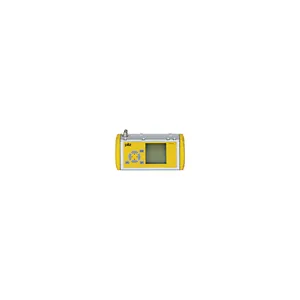

PSENvip receiver consisting of PSENvip RL D P. For automation system PSS 4000. Display left-hand. PL e SIL 3. Approved in accordance with IEC 61496-1 and EN 12622. The product will be discontinued. The successor is 584100.

Sensor technology
Safe camera systems
PSENvip - camera-based protection system
PSENvip

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 583601.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	2.78 KG / psc.
Commodity number	85258019
Country of origin	DE
Dimensions (WxHxD)	112x115.5x228 mm
EAN code
Product group	7043
approval	CE cULus Listed TÜV
espe type	4
cable lines	LiYY 8 x 0.25 mm2
etim version	ETIM-7.0
gross weight	3120 g
reaction time	4 ms
eclass version	ECLASS-9.1
connection type	M12
humidity rating	93 % r. h. at 40 °C
number of inputs	5
sensor principle	optical
max. cable length	75 m
ul enclosure type	1
supply voltage (v)	24 V
ambient temperature	0 - 50 °C
dc voltage at input	24 V DC
emc to standard ...	EN 61496-1 EN 61000-6-4
operating range (m)	0.1 - 10 m
power consumption dc	50 W
used wavelength range	510 - 550 nm
number of ossd outputs	2
acc. shock to standard1	10g
condensation permitted?	Not permitted
eclass reference feature	27310101
protection type standard	EN 60529
potential isolation s/c o	No
switch-on delay time ossd	0 - 2 s
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
potential isolation inputs	No
resolution protection type	Finger
housing material upper part	Aluminium
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
max. width of the detect. zone	42 mm
s/c output short circuit proof	Yes
