Pilz

584570

Name: 584570
Brand: Pilz
Availability: PreOrder

Product type: PSEN cable M12-4sm MIOsm MOVE, 10m

Datasheet

Description

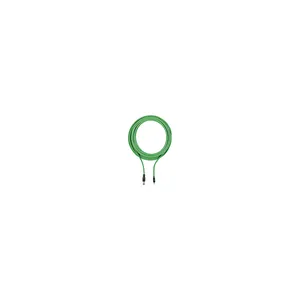

Connection cable, PUR, green RAL6018, Ethernet Cat5e, shielded, suitable for drag chains, 4-pin, connector straight M12 D-coded, onconnector straight Industrial Mini I/O, cable length: 10m

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Pre-assembled cable

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 584570.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.65 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
cas no.	7439-92-1
approval	CE UKCA
etim version	ETIM-7.0
gross weight	670 g
halogen-free	yes
length cable	10 m
shielding k1	yes
stranding k1	Star quad
rated current	0.5 A
eclass version	ECLASS-9.1
oil resistance	resistant
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	yes
connector type 1	4-pin M12 male connector
connector type 2	8-pin Mini-IO male connector
flame resistance	UL-Style 20549 UL 758, FT1
reach compliance	contains min. 1 SVHC-substance
cable material k1	Cu
ambient temperature	-20 - 60 °C
category of cable k1	Cat5
number of conductors	4
type of shielding k1	Wire mesh
%-part of the pollutant	> 0,1
conductor cross section	0.34 mm²
eclass reference feature	27319190
colour cable insulation 1	Green, similar to RAL6018
matl threaded ring conn 1	CuZn nickel-plated
reach included substances	Lead
shape of connector type 1	straight
shape of connector type 2	straight
cable cross section awg k1	22
material shield surface k1	Sn
contact surfaces material 1	CuZn, gold-plated
contact surfaces material 2	Au
insulation material cable k1	PE
typ. conductor resistance k1	120 Ohm/km
rohs except.s acc. to direct.	6c
typ. characteristic imped. k1	100 Ohm
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	PUR
specific conductor capacity k1	52pF/m
trailing capability of cable 1	yes
