Pilz

630280

Name: 630280
Brand: Pilz
Availability: PreOrder

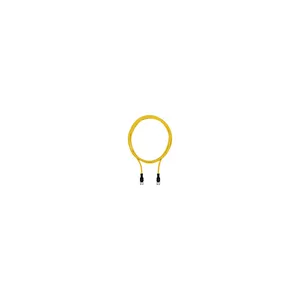

Product type: PSEN op cable axial M12 5-p. shield.0,5m

Description

Connection cable, PUR, yellow RAL1003, shielded, 5-pin, socket straight M12, on socket straight M12, A-coded, cable length: 0.5m

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 630280.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.05 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
approval	CE UKCA cULus Listed
etim version	ETIM-7.0
gross weight	57 g
halogen-free	yes
length cable	0.5 m
shielding k1	yes
cable type k1	Li9YC11Y
rated current	4 A
eclass version	ECLASS-9.1
housing colour	Black
oil resistance	resistant
connector type 1	5-pin M12 female connector
connector type 2	5-pin M12 female connector
flame resistance	UL VW1
housing material	PUR
cable material k1	Cu
ambient temperature	-25 - 80 °C
material of sockets	CuSn
etim reference group	EG000026
number of conductors	4
type of shielding k1	Wire mesh
approvals for cable k1	UL AWM-Style 20233 UL/CSA
conductor cross section	0.34 mm²
eclass reference feature	27060313
coding of m12 connector 1	A coded
coding of m12 connector 2	A coded
colour cable insulation 1	Yellow, similar to RAL 1003
shape of connector type 1	straight
shape of connector type 2	straight
cable cross section awg k1	22
material shield surface k1	Sn
contact surfaces material 1	Au
contact surfaces material 2	Au
bend radius (when laying) k1	5 x Ø
insulation material cable k1	PP (9Y)
typ. conductor resistance k1	57 Ohm/km
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	TPU 11YH1 PUR
max. outside diameter cable k1	5.55 mm
pollution degree clear.&creep.	3
specific conductor capacity k1	65.6pF/m
specific contact resistance k1	>= 7E+15 Ohm*km
trailing capability of cable 1	no
