Pilz

630303

Name: 630303
Brand: Pilz
Availability: PreOrder

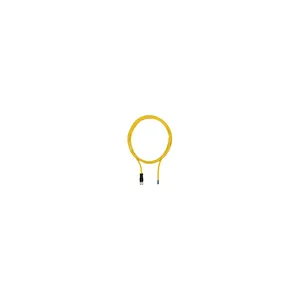

Product type: PSEN op cable axial M12 4-p. shield. 3m

Datasheet

Description

Connection cable, PUR, yellow RAL1003, shielded, 4-pin, socket straight M12, on open line end, A-coded, cable length: 3m

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Pre-assembled cable
PSEN op cable axial M12 4-p. shield. 3m

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 630303.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.161 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7169
cas no.	7439-92-1
approval	CE UKCA cULus Listed
etim version	ETIM-7.0
gross weight	168 g
halogen-free	yes
length cable	3 m
shielding k1	yes
cable type k1	Li9YC11Y
rated current	4 A
eclass version	ECLASS-9.1
housing colour	Black
oil resistance	resistant
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	yes
connector type 1	4-pin M12 female connector
flame resistance	UL VW1
housing material	PUR
reach compliance	contains min. 1 SVHC-substance
cable material k1	Cu
ambient temperature	-25 - 80 °C
material of sockets	CuSn
etim reference group	EG000026
number of conductors	4
type of shielding k1	Wire mesh
approvals for cable k1	UL AWM-Style 20233 UL/CSA
%-part of the pollutant	> 0,1
conductor cross section	0.34 mm²
eclass reference feature	27060311
approvals for connector 1	UL94 V-0
coding of m12 connector 1	A coded
colour cable insulation 1	Yellow, similar to RAL 1003
reach included substances	Lead
shape of connector type 1	straight
cable cross section awg k1	22
material shield surface k1	Sn
contact surfaces material 1	Au
bend radius (when laying) k1	5 x Ø
insulation material cable k1	PP (9Y)
typ. conductor resistance k1	57 Ohm/km
rohs except.s acc. to direct.	6c
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	TPU 11YH1 PUR
max. outside diameter cable k1	5.55 mm
pollution degree clear.&creep.	3
specific conductor capacity k1	65.6pF/m
specific contact resistance k1	>= 7E+15 Ohm*km
trailing capability of cable 1	no
