Pilz

630380

Name: 630380
Brand: Pilz
Availability: PreOrder

Product type: PSEN op2S-1-1

Datasheet

Description

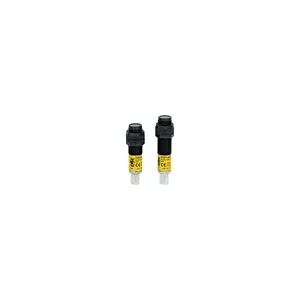

Safety light beam device, Type 2, PL c, body protection, infraredsensor, connection receiver: 4-pin M12 male connector, connection transmitter:4-pin M12 male connector, connection cable not supplied with the device.

Sensor technology
Optoelectronic protective devices
PSENopt - Safety light curtains
Safety light barriers

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 630380.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.039 KG / psc.
Commodity number	90314990
Country of origin	HU
Dimensions (WxHxD)	0x0x55 mm
EAN code
Product group	7040
approval	CE cULus Listed TÜV EAC (Eurasian)
espe type	2
etim version	ETIM-7.0
gross weight	68
reaction time	1 1
eclass version	ECLASS-9.1
connection type	M12 4-pin
humidity rating	95 % r. h. at 40 °C
sensor principle	Infrared
supply voltage (v)	20 30
ambient temperature	-25 55
operating range (m)	0 8
etim reference group	EG000026
used wavelength range	880 nm
acc. shock to standard1	30g
condensation permitted?	Not permitted
eclass reference feature	27272701
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
resolution protection type	Body
housing material upper part	ABS UL 94 V0
climatic suitability standard	EN 60068-2-3
weee classifikation (08/2018)	5 devices (feed size < 50cm)
