Pilz

630382

Product type: PSEN op4S-1-2

Description

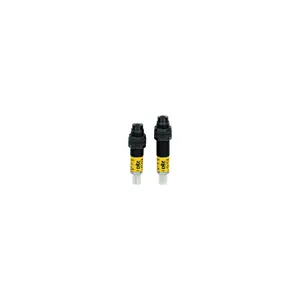

Safety light beam device, Type 4, PL e, body protection, infrared sensorwith increased operating range, connection receiver: 4-pin M12 maleconnector, connection transmitter: 4-pin M12 male connector, connection cable notsupplied with the device.
  • Sensor technology
  • Optoelectronic protective devices
  • PSENopt - Safety light curtains
  • Safety light barriers
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 630382.
  • ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.047 KG / psc.
Commodity number90314990
Country of originHU
Dimensions (WxHxD)0x0x68.2 mm
EAN code
Product group7040
approvalCE cULus Listed EAC (Eurasian) TÜV
espe type4
etim versionETIM-7.0
gross weight75
reaction time0.33 0.33
eclass versionECLASS-9.1
connection typeM12 4-pin
humidity rating95 % r. h. at 40 °C
sensor principleLaser
supply voltage (v)20 30
ambient temperature-10 50
operating range (m)0 40
etim reference groupEG000026
used wavelength range650 nm
number of ossd outputs0
acc. shock to standard130g
condensation permitted?Not permitted
eclass reference feature27272701
type of supply voltage u1DC
vibration to standard ...EN 60068-2-6
resolution protection typeBody
housing material upper partABS UL 94 V0
climatic suitability standardEN 60068-2-3
weee classifikation (08/2018)5 devices (feed size < 50cm)
