Pilz

630830

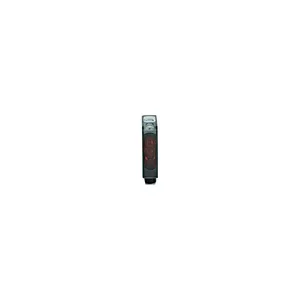

Product type: PSEN op3.3 Reflex NO/NC M12

Description

Reflected light sensor with N/O / N/C outputs for use as a mutingsensor, supply voltage 24 V, connector M12, 4-pin. Please note that a reflector (630323) must be ordered separately.
  • Sensor technology
  • Optoelectronic protective devices
  • PSENopt - Safety light curtains
  • Accessories PSENopt
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 630830.
  • ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.03 KG / psc.
Commodity number90314990
Country of originHU
Dimensions (WxHxD)66x50x18 mm
EAN code
Product group7040
approvalCE cULus Listed
etim versionETIM-7.0
gross weight78
reaction time0.5 0.5
eclass versionECLASS-9.1
housing materialABS
supply voltage (v)10 30
ambient temperature-10 55
operating range (m)0 9
used wavelength range640 nm
acc. shock to standard130g
eclass reference feature27272792
vibration to standard ...EN 60068-2-6
weee classifikation (08/2018)0 not relevant
