Pilz

631104

Name: 631104
Brand: Pilz
Availability: PreOrder

Product type: PSEN op2H-SL-24-075/1

Datasheet

Description

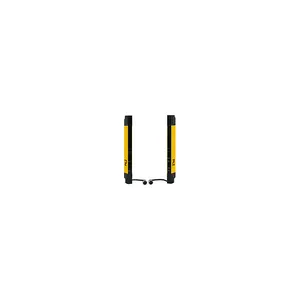

Safety light guard, Type 2, PL c, hand protection (resolution 24 mm), protected field height 750 mm. Features: Cascading without dead zone,slimline design. Supply voltage 24 V, connector M12, transmitter: 5- pin, receiver 5-pin. Connection cable is not supplied with the device.

Sensor technology
Optoelectronic protective devices
PSENopt - Safety light curtains
Slimline Type 2 light curtain, hand protection

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 631104.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.9 KG / psc.
Commodity number	90314990
Country of origin	IT
Dimensions (WxHxD)	15.4x750x32.6 mm
EAN code
Product group	7040
approval	CE cULus Listed TÜV
espe type	2
etim version	ETIM-7.0
gross weight	1600
length cable	0.2
reaction time	10 10
eclass version	ECLASS-9.1
humidity rating	15 ... 95%
sensor principle	optical
material end caps	Zamak
max. cable length	20
supply voltage (v)	24 24
ambient temperature	0 55
operating range (m)	0.2 6
etim reference group	EG000026
material front screen	PMMA
used wavelength range	850 nm
number of ossd outputs	2
acc. shock to standard1	10g
condensation permitted?	Not permitted
eclass reference feature	27272704
protection type standard	EN 60529
height of protected field	750
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
resolution protection type	Hand
housing material upper part	Aluminium
bend radius (when laying) k1	1 x Ø
weee classifikation (08/2018)	4 devices (feed size >50 cm)
bend radius, laid cascad.cable	1 x Ø
material of cable insulation 1	PVC
