Pilz

631187

Name: 631187
Brand: Pilz
Availability: PreOrder

Product type: PSEN op SL adapter

Datasheet

Description

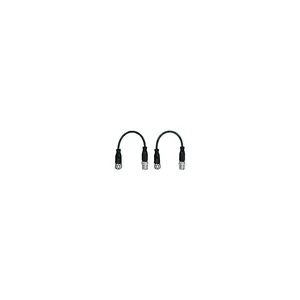

Cable, adapter, IP68, M12 female connector, black, straight, 4-pin, A- coded on M12 female connector, black, straight, 5-pin, A-coded, PUR, 0.1 m, 4× 0.25 mm², black, to connect a PSENopt slim, set of 2 for transmitter and receiver, PU 2 pieces.

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Adapter

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 631187.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.056 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)
EAN code
Product group	7169
approval	CE UKCA
etim version	ETIM-7.0
gross weight	66 g
halogen-free	yes
length cable	0.1 m
rated current	4 A
seal material	FPM
eclass version	ECLASS-9.1
housing colour	Black
connector type 1	5-pin M12 male connector
connector type 2	5-pin M12 female connector
flame resistance	cULus 20549
housing material	TPU, UL94 HB
material of pins	CuZn, gold-plated
cable material k1	Cu
ambient temperature	-20 - 80 °C
material of sockets	CuZn, gold-plated
number of conductors	4
approvals for cable k1	UL AWM-Style 20549
conductor cross section	0.25 mm²
eclass reference feature	27272791
coding of m12 connector 1	A coded
coding of m12 connector 2	A coded
colour cable insulation 1	Black
matl threaded ring conn 1	Zn, nickel-plated
matl threaded ring conn 2	Zn, nickel-plated
contact surfaces material 1	Au
contact surfaces material 2	Au
bend radius (when laying) k1	6 x Ø
insulation material cable k1	PP (9Y)
typ. conductor resistance k1	58 Ohm/km
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	TPU / TPE-U
max. outside diameter cable k1	4.55 mm
pollution degree clear.&creep.	3
specific contact resistance k1	>= 1E+16 Ohm*cm
trailing capability of cable 1	yes
