Pilz

632024

Name: 632024
Brand: Pilz
Availability: PreOrder

Product type: PSEN opII3H-s-30-075

Datasheet

Description

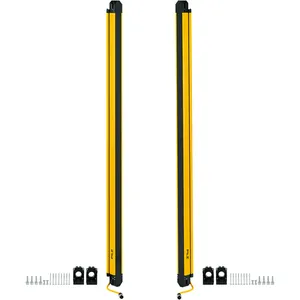

Safety light guard, Type 3, PL d, hand protection (resolution 30 mm), protected field height 750 mm without dead zone, supply voltage 24 V. Connector M12, transmitter: 5-pin, receiver 5-pin. Connection cable not supplied with the device.

Sensor technology
Optoelectronic protective devices
PSENopt II - Safety light curtains
Basic Type 3 light curtain, hand protection

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 632024.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	2.225 KG / psc.
Commodity number	85365019
Country of origin	CH
Dimensions (WxHxD)	35x754x40 mm
EAN code
Product group	7104
approval	CE cULus Listed KCs TÜV EAC (Eurasian)
espe type	3
etim version	ETIM-7.0
gross weight	3910
reaction time	7.8 7.8
eclass version	ECLASS-9.1
humidity rating	95 % r. h. at 50 °C
housing material	Aluminium
sensor principle	Infrared
material end caps	Zn
max. cable length	50
supply voltage (v)	24 24
ambient temperature	-25 60
emc to standard ...	IEC 61496-1
operating range (m)	0.2 18
etim reference group	EG000026
material front screen	PC
used wavelength range	850 nm
number of ossd outputs	2
acc. shock to standard1	40g
acc. shock to standard2	50g
condensation permitted?	Not permitted
eclass reference feature	27272704
height of protected field	750
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
resolution protection type	Hand
bend radius (when laying) k1	5 x Ø
bracket for shock standard 1	Adv Bracket Kit
bracket for shock standard 2	Adv Bracket Kit
bracket for shock standard 3	Swivel mount
weee classifikation (08/2018)	4 devices (feed size >50 cm)
