6B000002

Name: 6B000002
Brand: Pilz
Availability: PreOrder

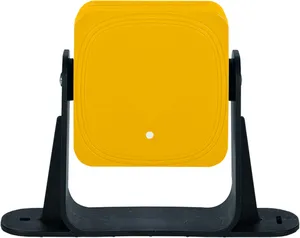

Product type: PSEN rd1.1 sensor

Datasheet

Description

Radar sensor, 4 m operating range, PL d (Cat. 2) in accordance with ENISO 13849

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 6B000002.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.222 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	85x85x53 mm
EAN code
Product group	7163
approval	RED CE TÜV
gross weight	362
reaction time	100
humidity rating	Max. 95 %
sensor principle	FMCW radar
carrier frequency	24 - 24.25 GHz
max. cable length	25
ambient temperature	-30 60
height with bracket	125
vertical opening angle	30°/15°
condensation permitted?	Not permitted
dimension w with bracket	165
horizontal opening angle	110°/50°
perm. operating height asl	2000 m
source of internal voltage	Via control unit
operating range safety zone	4
operating range warning zone	4
number of zone configurations	32
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	4
