Pilz

6D000026

Name: 6D000026
Brand: Pilz
Availability: PreOrder

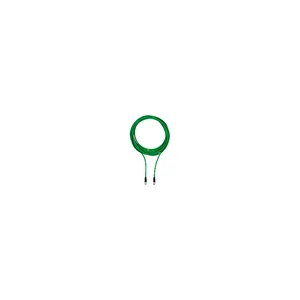

Product type: PSEN sc cable CAT5e M12-8sm/M12-8sm, 20m

Datasheet

Description

Connection cable, PUR, green RAL6018, Ethernet Cat5e, shielded, 8-pin, connector straight M12, on connector straight M12, connection cable for PSENscan master subscriber, cable length: 20 m

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Pre-assembled cable

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 6D000026.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	1.36 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)
EAN code
Product group	7169
cas no.	7439-92-1
approval	CE UKCA
etim version	ETIM-7.0
gross weight	1370 g
halogen-free	yes
length cable	20 m
shielding k1	yes
stranding k1	4x twisted pair
rated current	2 A
seal material	FPM
eclass version	ECLASS-9.1
housing colour	Black
oil resistance	resistant
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	yes
connector type 1	8-pin M12 male connector
connector type 2	8-pin M12 male connector
flame resistance	CSA FT-1 IEC 60332-1 CEI 20-35 EN 50265 UL VW1
material of pins	CuZn, gold-plated
reach compliance	contains min. 1 SVHC-substance
cable material k1	Cu
ambient temperature	-30 - 80 °C
category of cable k1	Cat5e
number of conductors	8
type of shielding k1	Braided tinned copper
approvals for cable k1	UL AWM-Style 20236
%-part of the pollutant	> 0,1
conductor cross section	0.22 mm²
eclass reference feature	27272791
halogen-free to standard	EN 50267 IEC 60754 CEI 20-37
approvals for connector 1	UL94 V-0
approvals for connector 2	UL94 V-0
coding of m12 connector 1	A coded
coding of m12 connector 2	A coded
colour cable insulation 1	Yellow green RAL 6018
matl threaded ring conn 1	CuZn nickel-plated
matl threaded ring conn 2	CuZn nickel-plated
reach included substances	Lead
shape of connector type 1	straight
shape of connector type 2	straight
torque interlocking screw	0.6 Nm
cable cross section awg k1	24
material shield surface k1	Sn
oil resistance to standard	VDE 0472 part 803 A/B HD 22.10 S1 UL 1581
contact surfaces material 1	CuZn, Ni b/Au 0.2 gal.
contact surfaces material 2	CuZn, Ni b/Au 0.2 gal.
bend radius (when laying) k1	5 x Ø
insulation material cable k1	PP (9Y)
rohs except.s acc. to direct.	6c
typ. characteristic imped. k1	100 Ohm ± 15 Ohm
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	PUR
max. outside diameter cable k1	7.6 mm
pollution degree clear.&creep.	2 3
specific conductor capacity k1	49 pF/m
trailing capability of cable 1	yes
