6L000018

Name: 6L000018
Brand: Pilz
Availability: PreOrder

Product type: PSEN me5S NC-NC.NC-NC 1switch

Datasheet

Description

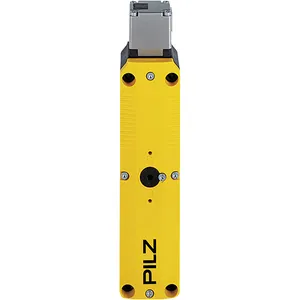

Mechanical safety gate system PSENmech, interlock principle springforce, contacts interlocking 2 N/C, contacts guard locking 2 N/C, supplyvoltage 24 V AC/DC.

Sensor technology
Safety gate systems
PSENmech with guard locking - safety gate system
PSENmech with guard locking

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 6L000018.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.489 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	42x192x44 mm
EAN code
Product group	7172
approval	CSA CE DGUV EAC (Eurasian)
unit type	Sensor
etim version	ETIM-7.0
gross weight	541
holding force	1500
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	no
reach compliance	Contains no SVHC substances
supply voltage (v)	24
ambient temperature	-25
overvoltage category	II
protection type, housing	IP67
type of supply voltage u1	AC/DC
voltage ac15 safety cont.	240
voltage dc13 safety cont.	250
weee classifikation (08/2018)	5 devices (feed size < 50cm)
max. current ac15 safety cont.	1.5
suitable for series connection	ja
utilisation cat. ac15/dc13sta.	EN 60947-5-1
