Pilz

6Z000006

Name: 6Z000006
Brand: Pilz
Availability: PreOrder

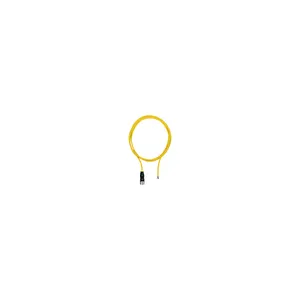

Product type: PSEN cable M23-12sf, 10m

Datasheet

Description

Connection cable, PUR, yellow RAL1003, twisted pair (1x2x20AWG +3x2x24AWG), shielded, suitable for drag chains, 12-pin, socket straight M23, on open line end, 8-pin configured, connection cable for PSEN enc sincos and PSEN enc HTL, cable length 10m

Connection technology
Cables and plug-in connectors
Cables and plug-in connectors
Pre-assembled cable

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 6Z000006.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.814 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)
EAN code
Product group	7169
approval	CE UKCA
etim version	ETIM-7.0
gross weight	816 g
halogen-free	yes
length cable	10 m
shielding k1	yes
stranding k1	4x twisted pair
rated current	8 A
eclass version	ECLASS-9.1
housing colour	Black
oil resistance	resistant
connector type 1	12-pin M23 female connector
flame resistance	UL FT2
cable material k1	Cu
ambient temperature	-50 - 80 °C
material of sockets	CuZn, gold-plated
number of conductors	8
type of shielding k1	Wire mesh
approvals for cable k1	UL AWM-Style 20233
colour cable insulation 1	Signal yellow RAL1003
diameter data line awg k1	24
matl threaded ring conn 1	CuZn nickel-plated
shape of connector type 1	straight
torque interlocking screw	2.0 Nm
bend radius (when laying) k1	7.5 x Ø
insulation material cable k1	PP (9Y)
weee classifikation (08/2018)	5 devices (feed size < 50cm)
insulation resistance cable k1	100 MOhm/km at 20 °C
material of cable insulation 1	TPU / TPE-U
max. outside diameter cable k1	8.05 mm
pollution degree clear.&creep.	3
trailing capability of cable 1	yes
typ. cond.resist. data cab. k1	94.2 Ohm/km at 20 °C
