Pilz

750330

Name: 750330
Brand: Pilz
Availability: PreOrder

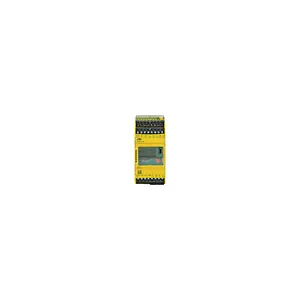

Product type: PNOZ s30 24-240VACDC 2 n/o 2 n/c

Datasheet

Description

PNOZsigma safety relay (standalone), inputs: incremental encoder, proximity switch, outputs: 2 N/O, 2 N/C, UB: 24 -240 V AC/DC, width: 45 mm, monitoring of standstill, speed, speed range, position, direction, analogue voltage (track S), display handling push & turn, plug-in screw terminals, expansion with PNOZsigma contact expansion.

Relay modules
Safety relays / protection relays
PNOZsigma - safety relays
Speed monitoring

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 750330.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.405 KG / psc.
Commodity number	85364900
Country of origin	DE
Dimensions (WxHxD)	45x98x120 mm
EAN code
Product group	7003
approval	CCC CE cULus Listed EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	425 g
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
tolerance of u2	-15 %/+10 %
reach compliance	contains min. 1 SVHC-substance
mounting position	horizontal on top hat rail
supply voltage (v)	24 - 240 V
ambient temperature	-20 - 55 °C
connection terminal	Screw terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61000-6-3 EN 61326-3-1
etim reference group	EG000019
overvoltage category	II
power consumption ac	9 VA
power consumption dc	5.5 W
semiconductor inputs	4
supply voltage 2 (v)	48 - 240 V
relay contact material	AgCuNi
condensation permitted?	Not permitted
eclass reference feature	27371811
flex. cond. c/s awg info	24 - 12 AWG
type of analogue outputs	Current
voltage ac1 safety cont.	240 V
voltage dc1 safety cont.	24 V
safety contacts: ac at ul	240 VAC G.U. (same polarity)
type of supply voltage u1	AC/DC
type of supply voltage u2	AC
vibration to standard ...	EN 60068-2-6
voltage ac15 safety cont.	230 V
voltage dc13 safety cont.	24 V
number of analogue outputs	1
signal range analog output	4 .. 20 mA 0 .. 20 mA
climatic suitability to ...	EN 60068-2-78
housing material upper part	PC
max. device circuit breaker	Max. conductor cross section
number of semicond. outputs	4
tolerance ext. volt. dc s/c	-20 %/+20 %
addit. contact details relay	+ 0.2 µm Au
housing material front plate	PC
clearance & creepage dist. to	EN 60947-1
max. current ac1 safety cont.	4 A
max. current dc1 safety cont.	4 A
number of incremental encoder	1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
connection (increment encoder)	8-pin RJ-45 female connector
housing material lower section	PC
max. current ac15 safety cont.	3 A
phase pos. diff.sign. inc.enc.	90° ±30°
pollution degree clear.&creep.	2
prog. mon. fun. wo hyst. incr.	10 mHz - 1,000 kHz
prog. mon.fun. wo hyst prox sw	10 mHz - 1,000 kHz
reaction time over limit value	1/f_actual + 16ms
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
utilisation cat. to en 60947-1	DC-12
