Pilz

751600

Name: 751600
Brand: Pilz
Availability: PreOrder

Product type: PNOZ s60 C 24-48VACDC 3n/o 1n/c 6so

Datasheet

Description

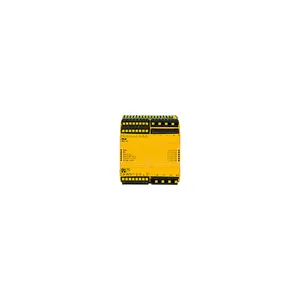

PNOZsigma voltage monitoring relay up to PL e and SIL Cl 3, UB = 24 - 48 V AC/DC, outputs: 3 N/O, 1 N/C, 6 auxiliary outputs,width: 90 mm, plug-in spring-loaded terminals, expansion with PNOZsigma contact expansions.

Relay modules
Safety relays / protection relays
PNOZsigma - safety relays
Safe monitoring device

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 751600.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.67 KG / psc.
Commodity number
Country of origin
Dimensions (WxHxD)	90x98x120 mm
EAN code
Product group	7003
approval	CE CCC cULus Listed EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	680 g
purpose of u1	Device supply
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
number of inputs	6
mounting position	any
supply voltage (v)	24 V
ambient temperature	-10 °C
connection terminal	Spring-loaded terminal
emc to standard ...	EN 60255-26 EN 61326-3-1
etim reference group	EG000019
overvoltage category	III
power consumption ac	10.2 VA
power consumption dc	7.5 W
relay contact material	AgCuNi
condensation permitted?	Not permitted
galv. isol. n/safe sc o	Yes
earthquake to standard 1	EN 60255-21-3
eclass reference feature	27371819
voltage ac1 safety cont.	250 V
voltage dc1 safety cont.	24 V
safety contacts: ac at ul	250 VAC G.U. (same polarity)
test severity class shock	Class 1
type of supply voltage u1	AC/DC
vibration to standard ...	EN 60255-21-1
voltage ac15 safety cont.	230 V
voltage dc13 safety cont.	24 V
climatic suitability to ...	EN 60068-2-2 EN 60068-2-1 EN 60068-2-78 EN 60068-2-14
housing material upper part	PC
number of semicond. outputs	6
tolerance ext. volt. dc s/c	-20 %/+20 %
addit. contact details relay	+ 0.2 µm Au
housing material front plate	PC
clearance & creepage dist. to	EN 60255-27
max. current ac1 safety cont.	6 A
max. current dc1 safety cont.	6 A
meas. circ. frequ. range (hz)	50 - 60 Hz
test severity class vibration	Class 1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
max. current ac15 safety cont.	3 A
pollution degree clear.&creep.	2
short circ. prot. n/safe s/c o	Yes
signal level at 1 n/safe s/c o	UB - 2.5 VDC at 0.05 A
test severity class cont.shock	Class 1
test severity class earthquake	Class 0
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
