Pilz

760120

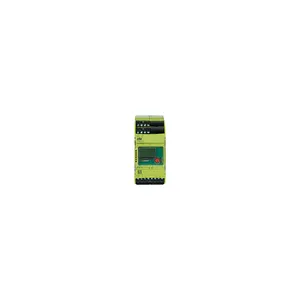

Name: 760120
Brand: Pilz
Availability: PreOrder

Product type: PMD s20 24-240VAC/DC 10-200k / 2U

Datasheet

Description

Insulation monitor, Sigma housing, for monitoring the insulation in galvanically isolated networks, limit values can be setvia display, can be stored on a chip card, relay output: 2 switching contacts, operating voltage: 24 - 240 V AC/DC, screwterminals.

Relay modules
Monitoring relays / monitoring devices
PMDsigma - monitoring relays
PMDsigma

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 760120.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.264 KG / psc.
Commodity number	85364900
Country of origin	FR
Dimensions (WxHxD)	45x98x120 mm
EAN code
Product group	7072
approval	CE UKCA cULus Listed
etim version	ETIM-7.0
gross weight	295 g
eclass version	ECLASS-9.1
terminal style	plug-in
reach compliance	contains min. 1 SVHC-substance
mounting position	any
response value ran	10 ... 200 kOhm
supply voltage (v)	24 - 240 V
ambient temperature	-10 - 55 °C
connection terminal	Screw terminal
emc to standard ...	EN 61000-6-2 EN 61000-6-4
etim reference group	EG000019
overvoltage category	III
power consumption ac	5 VA
power consumption dc	2.5 W
condensation and icing	Not permitted
relay contact material	AgCdO
condensation permitted?	Not permitted
eclass reference feature	27371807
flex. cond. c/s awg info	24 - 12 AWG
max. measuring voltage um	±16 V
response error at max. ce	±5 %
safety contacts: ac at ul	240 VAC G. U.
type of supply voltage u1	AC/DC
vibration to standard ...	EN 60068-2-6
climatic suitability to ...	EN 60068-2-78
housing material upper part	PC
max. device circuit breaker	Max. conductor cross section
addit. contact details relay	+ 3.0 µm Au
housing material front plate	PC
clearance & creepage dist. to	EN 60664-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
max. response error en 61557-8	±15 % ±1kOhm
pollution degree clear.&creep.	2
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
