Pilz

772101

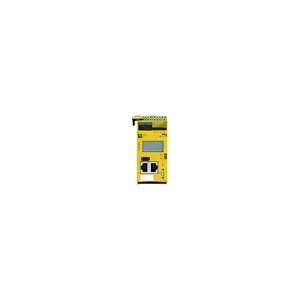

Name: 772101
Brand: Pilz
Availability: PreOrder

Product type: PNOZ m B1

Datasheet

Description

Configurable safe small controllers PNOZmulti 2 base unit, expandable, Ethernet interface with switch, USB 20 memory.

Small controllers PNOZmulti
Small controllers PNOZmulti 2
PNOZmulti 2 - base units
PNOZmulti 2 - base units

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 772101.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.209 KG / psc.
Commodity number	85371091
Country of origin	DE
Dimensions (WxHxD)	45x101.4x120.2 mm
EAN code
Product group	7106
cas no.	7439-92-1
approval	CE UKCA cULus Listed KOSHA TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	219 g
purpose of u1	System supply
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	yes
reach compliance	contains min. 1 SVHC-substance
application range	Failsafe
mounting position	horizontal on top hat rail
supply voltage (v)	24 V
ambient temperature	0 °C
connection terminal	Screw terminal Cage clamp terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
ethernet ip address	169.254.60.1
etim reference group	EG000024
overvoltage category	II
power consumption dc	18.5 W
%-part of the pollutant	> 0,1 %
condensation permitted?	Not permitted
eclass reference feature	27242207
flex. cond. c/s awg info	24 - 12 AWG
protection type standard	EN 60529
reach included substances	Lead
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
ethernet transmission rate	10 MBit/s 100 MBit/s
perm. operating height asl	2000 m
housing material upper part	PC
ambient temperature standard	EN 60068-2-14
connector type ethernet int.	RJ45
housing material front plate	PC
number of test pulse outputs	4
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
number of ethernet interfaces	2
rohs except.s acc. to direct.	7a
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
