772130
Pilz

772130

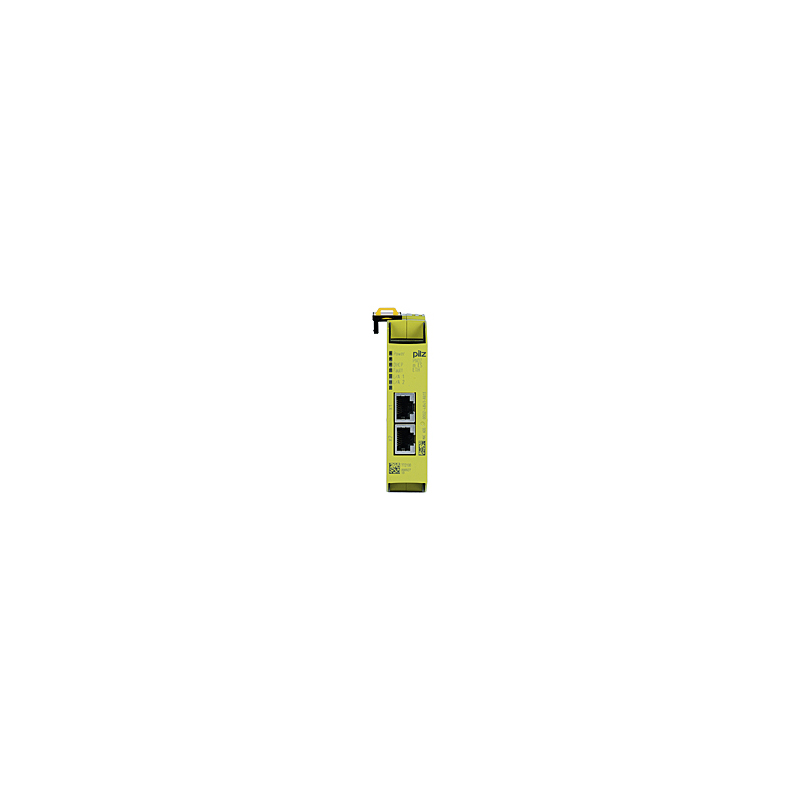

Product type: PNOZ m ES ETH

Description

Configurable safe small controllers PNOZmulti 2, communication module, 2 Ethernet / Modbus TCP interfaces.
Read More
  • Small controllers PNOZmulti
  • Small controllers PNOZmulti 2
  • PNOZmulti 2 - communication modules
  • PNOZmulti 2 - communication modules
Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: app. 1 Day
Delivery Time: app. 2-3 Weeks
Estimated delivery time to our warehouse in Berlin
Delivery Terms: FCA Berlin
individually for each client according to INCOM TERMS 2025
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.08 KG / psc.
Commodity number85176200
Country of originDE
Dimensions (WxHxD)22.5x101.4x111 mm
EAN code
Product group7110
approval CE cULus Listed EAC (Eurasian)
etim version ETIM-7.0
gross weight 90 g
eclass version ECLASS-9.1
purpose of uint1 Module supply
reach compliance contains min. 1 SVHC-substance
application range Standard
mounting position horizontal on top hat rail
fieldbus interface Modbus/TCP
ambient temperature 0 - 60 °C
connection fieldbus RJ45
din-rail dimensions 35 x 7.5 EN 50022
emc to standard ... EN 61131-2
ethernet ip address 169.254.60.1
etim reference group EG000024
fieldbus device type Slave
overvoltage category II
voltage type of uint1 DC
acc. shock to standard1 15g
condensation permitted? Not permitted
eclass reference feature 27242208
galv. isolation fieldbus Yes
protection type standard EN 60529
tolerance of uint. module -2 %/+2 %
vibration to standard ... EN 60068-2-6
ethernet transmission rate 10 MBit/s 100 MBit/s
perm. operating height asl 2000 m
source of internal voltage Via base unit
housing material upper part PC
ambient temperature standard EN 60068-2-14
connector type ethernet int. RJ45
housing material front plate PC
storage temperature standard EN 60068-2-1/-2
clearance & creepage dist. to EN 61131-2
climatic suitability standard EN 60068-2-30 EN 60068-2-78
number of ethernet interfaces 2
potential isolation 1 between Fieldbus and module
type of potential isolation 1 Functional insulation
weee classifikation (08/2018) 5 devices (feed size < 50cm)
housing material lower section PC
pollution degree clear.&creep. 2
