Pilz

772132

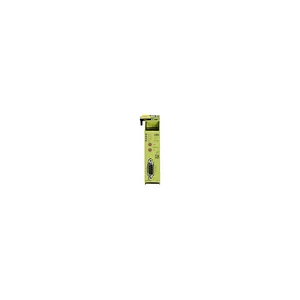

Name: 772132
Brand: Pilz
Availability: PreOrder

Product type: PNOZ m ES Profibus

Datasheet

Description

Configurable safe small controllers PNOZmulti 2, fieldbus module, Profibus.

Small controllers PNOZmulti
Small controllers PNOZmulti 2
PNOZmulti 2 - communication modules
PNOZmulti 2 - communication modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 772132.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.095 KG / psc.
Commodity number	85176200
Country of origin	DE
Dimensions (WxHxD)	22.5x101.4x115 mm
EAN code
Product group	7110
approval	CE UKCA cULus Listed EAC (Eurasian)
etim version	ETIM-7.0
gross weight	105 g
test voltage	500 V AC
purpose of u1	Module supply
eclass version	ECLASS-9.1
rohs conformity	yes
purpose of uint1	Module supply
reach compliance	Contains no SVHC substances
mounting position	horizontal on top hat rail
fieldbus interface	PROFIBUS-DP
supply voltage (v)	24 V
ambient temperature	0 - 60 °C
connection fieldbus	9-pin D-Sub female connector
connection terminal	Screw terminal Spring-loaded terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
fieldbus device type	Slave DPV0
overvoltage category	II
power consumption dc	0.9 W
voltage type of uint1	DC
potential isolation u1	Yes
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242208
flex. cond. c/s awg info	24 - 12 AWG
galv. isolation fieldbus	Yes
protection type standard	EN 60529
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
range fieldbus trans. rate	9.6 kBit/s - 12 MBit/s
source of internal voltage	Via base unit
housing material upper part	PC
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
potential isolation 1 between	Fieldbus and module
type of potential isolation 1	Functional insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
perm. fieldbus station address	0 - 99d
pollution degree clear.&creep.	2
