Pilz

772181

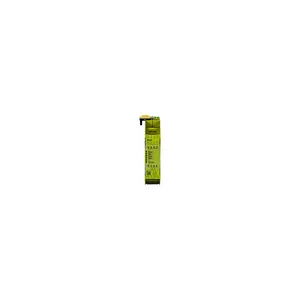

Name: 772181
Brand: Pilz
Availability: PreOrder

Product type: PNOZ m ES 14DO

Datasheet

Description

Configurable safe small controllers PNOZmulti 2, expansion module, 14 semiconductor outputs for standard applications.

Small controllers PNOZmulti
Small controllers PNOZmulti 2
PNOZmulti 2 - I/O modules
PNOZmulti 2 - standard I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 772181.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.1 KG / psc.
Commodity number	85176200
Country of origin	DE
Dimensions (WxHxD)	22.5x101.4x120 mm
EAN code
Product group	7108
approval	UL Listed CE UKCA
etim version	ETIM-7.0
gross weight	110 g
purpose of u2	Supply of SC outputs
eclass version	ECLASS-9.1
terminal style	plug-in
permitted loads	Resistive Inductive Capacitive
purpose of uint1	Module supply
reach compliance	contains min. 1 SVHC-substance
application range	Standard
mounting position	horizontal on top hat rail
ambient temperature	0 - 60 °C
connection terminal	Screw terminal Spring-loaded terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
overvoltage category	II
sc outputs: dc at ul	24 VDC P. D.
supply voltage 2 (v)	24 V
voltage type of uint1	DC
potential isolation u2	Yes
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242204
flex. cond. c/s awg info	24 - 12 AWG
protection type standard	EN 60529
type of supply voltage u2	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
source of internal voltage	Via base unit
housing material upper part	PC
ambient temperature standard	EN 60068-2-14
housing material front plate	PC
potential isolation of s/c o	Yes
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
potential isolation 1 between	SC output and system voltage
type of potential isolation 1	Basic insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
s/c output short circuit proof	Yes
