772230
Pilz

772230

Product type: MM A MINI-IO CAB05 2.5m

Datasheet

Description

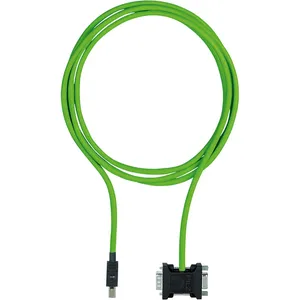

Motion Monitoring Adapter BOS/REX 15/15, 2.5 m.
  • Small controllers PNOZmulti
  • Small controllers PNOZmulti 2
  • PNOZmulti 2 - base units
  • Accessories PNOZmulti 2
Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 772230.
  • ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.143 KG / psc.
Commodity number85444290
Country of originDE
Dimensions (WxHxD)40.8x38x16 mm
EAN code
Product group7106
approvalcULus Listed
etim versionETIM-7.0
gross weight153 g
length cable2.5 m
shielding k1yes
fixing screwsUNC 4-40
eclass versionECLASS-9.1
housing colourBlack RAL 9005
connector type 115-pin D-Sub male connector
connector type 215-pin D-Sub female connector
connector type 38-pin Mini-IO male connector
housing materialTPE-SEBS UL 94 HB
material of pinsCu alloy
ambient temperature0 - 60 °C
material of socketsCu alloy
etim reference groupEG000026
number of conductors8
approvals for cable k1UL AWM-Style 20233
condensation permitted?Not permitted
conductor cross section0.14 mm²
eclass reference feature27060313
approvals for connector 1UL94 V-0
approvals for connector 2UL94 V-0
approvals for connector 3UL94 V-0
colour cable insulation 1Green, similar to RAL6018
shape of connector type 1straight
shape of connector type 2straight
shape of connector type 3straight
cable cross section awg k126
contact surfaces material 1Au
contact surfaces material 2Au
contact surfaces material 3Au
bend radius (when laying) k18 x Ø
housing material connector 3PBT
tolerance of cable length k1+/- 0.15 m
weee classifikation (08/2018)5 devices (feed size < 50cm)
material of cable insulation 1PUR
max. outside diameter cable k16 mm
trailing capability of cable 1yes
