Pilz

773200

Name: 773200
Brand: Pilz
Availability: PreOrder

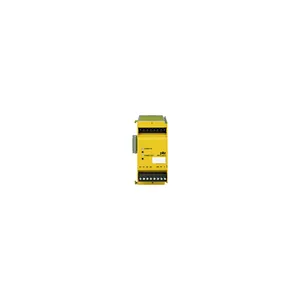

Product type: PNOZ pps1p 100-240VAC

Datasheet

Description

Power supply for the modular safety system PNOZpower, connection options for 1 base unit and max. 4 expansion modules, UB 100 - 240 V AC/DC, output voltage: 19 V / 24 V, output power: 15 W, width: 45 mm, galvanic isolation, short circuit-proof, plug-in terminals of screw type.

Relay modules
Safety relays / protection relays
PNOZpower - safety relays
Accessories PNOZpower

Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 773200.
ZWOD Vertriebs und Logistik GmbH carries 4141 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.285 KG / psc.
Commodity number	85044084
Country of origin	DE
Dimensions (WxHxD)	45x94x121 mm
EAN code
Product group	7005
approval	CE CCC cULus Listed EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	295 g
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
mounting position	horizontal on top hat rail
supply voltage (v)	100 - 240 V
ambient temperature	-10 - 55 °C
connection terminal	Screw terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61000-6-3
etim reference group	EG000019
overvoltage category	III
power consumption ac	30 VA
condensation permitted?	Not permitted
eclass reference feature	27371819
flex. cond. c/s awg info	24 - 14 AWG
type of secondary voltage	DC
type of supply voltage u1	AC
vibration to standard ...	EN 60068-2-6
climatic suitability to ...	EN 60068-2-78
housing material upper part	ABS UL 94 V0
housing material front plate	ABS UL 94 V0
clearance & creepage dist. to	EN 60947-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
pollution degree clear.&creep.	2
