Pilz

773405

Name: 773405
Brand: Pilz
Availability: PreOrder

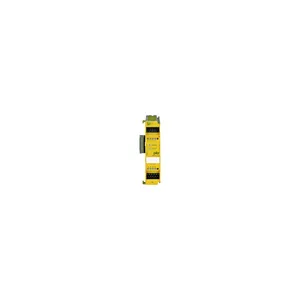

Product type: PNOZ mi1p 8 input coated version

Datasheet

Description

PNOZmulti Classic, expansion module, failsafe, 8 digital inputs, for increased environmental requirements.

Small controllers PNOZmulti
Safety systems PNOZmulti Classic
PNOZmulti - I/O modules
PNOZmulti - safe I/O modules

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 773405.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.123 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	22.5x94x121 mm
EAN code
Product group	7018
cas no.	7439-92-1 1317-36-8
approval	CE UKCA cULus Listed KOSHA EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	141 g
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	yes
purpose of uint1	Module supply
reach compliance	contains min. 1 SVHC-substance
mounting position	horizontal on top hat rail
ambient temperature	-25 °C
broad band noise to	EN 60068-2-64
connection terminal	Screw terminal Spring-loaded terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
overvoltage category	III
voltage type of uint1	DC
%-part of the pollutant	> 0,1
acc. shock to standard1	15g
condensation permitted?	Briefly
corrosive gas check h2s	DIN V 40046-37
corrosive gas check so2	DIN V 40046-36
eclass reference feature	27242204
flex. cond. c/s awg info	24 - 16 AWG
number of digital inputs	8
protection type standard	EN 60529
potential isolation input	No
reach included substances	Lead Lead oxide
tolerance of uint. module	-2 %/+2 %
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
signal level at input at 0	-3 - +5 VDC
source of internal voltage	Via base unit
ambient temperature standard	EN 60068-2-14
housing material front plate	ABS UL 94 V0
storage temperature standard	EN 60068-2-1/-2
u input to en 61131-2 type 1	24 V DC
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
rohs except.s acc. to direct.	7a 7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
pollution degree clear.&creep.	2
