Pilz

773602

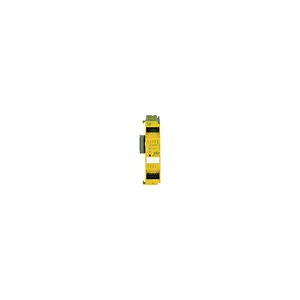

Name: 773602
Brand: Pilz
Availability: PreOrder

Product type: PNOZ ml2p safe link PDP

Datasheet

Description

PNOZmulti Classic, connection module, failsafe, connection for 4 decentralised PDP67 devices, CAN-based, series connection, supply 4 A.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 773602.
ZWOD Vertriebs und Logistik GmbH carries 4134 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.133 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	22.5x94x121 mm
EAN code
Product group	7018
approval	CE UKCA cULus Listed KCC KOSHA TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	151 g
purpose of u1	Module supply
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
mounting position	horizontal on top hat rail
supply voltage (v)	24 V
ambient temperature	0 °C
connection terminal	Screw terminal Spring-loaded terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
overvoltage category	III
power consumption dc	101 W
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242208
flex. cond. c/s awg info	24 - 16 AWG
protection type standard	EN 60529
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
max. cable length shielded	100 m
perm. operating height asl	2000 m
ambient temperature standard	EN 60068-2-14
housing material front plate	ABS UL 94 V0
max. cable length unshielded	30 m
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
pollution degree clear.&creep.	2
short circ.prot. ub dec. mods.	Yes
