Pilz

773613

Name: 773613
Brand: Pilz
Availability: PreOrder

Product type: PDP67 F 4 code VA

Datasheet

Description

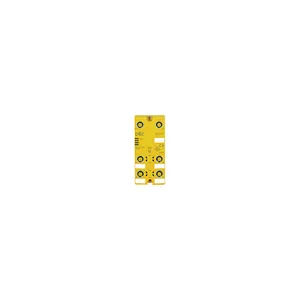

Decentralised passive distributor for connection of PSENcode, PSENslockand PSENini to a Pilz control system, max. 4 sensors, protection type IP67, stainless steel connections.

Controller
I/O systems
PDP 67
Passive junction

Contact Person
Thomas Hoffmann
+49 305 201 4443
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 773613.
ZWOD Vertriebs und Logistik GmbH carries 4141 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.24 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	60x120x20 mm
EAN code
Product group	7078
approval	CE cULus Listed
etim version	ETIM-7.0
gross weight	295 g
eclass version	ECLASS-9.1
terminal style	screw interlocked
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
supply voltage (v)	24 V
ambient temperature	-40 - 60 °C
connection terminal	M12 1.4305 stainless steel
etim reference group	EG000026
overvoltage category	II
condensation permitted?	Briefly
eclass reference feature	27440108
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
climatic suitability to ...	EN 60068-2-2 EN 60068-2-1 EN 60068-2-14
housing material upper part	PBT
ambient temperature standard	EN 60068-2-14
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 60664-1
climatic suitability standard	EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	2
