Pilz

773615

Name: 773615
Brand: Pilz
Availability: PreOrder

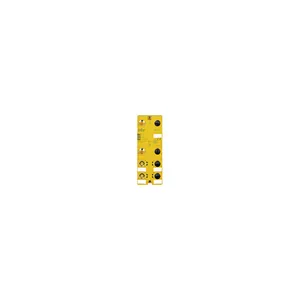

Product type: PDP67 F 8DI ION HP VA

Datasheet

Description

Decentralised input module for PNOZmulti, protection type IP67,connection via connection module, 8 safe digital inputs, 8 outputs configurable as standard, test pulse or 24 V, additional supply voltage, stainless steel connectors.

Controller
I/O systems
PDP 67
I/O Net p - I/O modules

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 773615.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.315 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	60x162x30 mm
EAN code
Product group	7078
approval	CE BG cULus Listed TÜV
etim version	ETIM-7.0
gross weight	330
purpose of u1	supply
purpose of u2	Load supply
eclass version	ECLASS-9.1
terminal style	screw interlocked
humidity rating	93 % r. h. at 40 °C
permitted loads	Resistive Inductive Capacitive
tolerance of u2	-30 %/+25 %
number of inputs	8
reach compliance	contains min. 1 SVHC-substance
application range	Standard/failsafe
supply voltage (v)	24 24
ambient temperature	-30 60
connection terminal	M12 1.4305 stainless steel
emc to standard ...	EN 55011: Class A EN 61000-4-8 EN 61000-4-11 EN 61000-4-9 EN 61000-4-4 EN 61000-4-5 EN 61000-4-6 EN 61000-4-2 EN 61000-4-3
dc voltage at output	24 V DC
etim reference group	EG000024
overvoltage category	III
power consumption dc	1.2
supply voltage 2 (v)	24 24
function of s/c output	Test pulse output 24 VDC output Standard output
acc. shock to standard1	15g
condensation permitted?	Briefly
eclass reference feature	27242604
protection type standard	EN 60529
potential isolation input	Yes
terminal v ind. loads off	-45 V
type of supply voltage u1	DC
type of supply voltage u2	DC
vibration to standard ...	EN 60068-2-6
signal level at input at 0	-3 - +5 VDC
climatic suitability to ...	EN 60068-2-78
housing material upper part	Valox 855
max. device circuit breaker	4 A
ambient temperature standard	EN 60068-2-14
potential isolation of s/c o	Yes
storage temperature standard	EN 60068-2-1/-2
u input to en 61131-2 type 1	24 V DC
clearance & creepage dist. to	IEC 60664-1
climatic suitability standard	EN 60068-2-78
housing material label holder	PC
potential isolation 1 between	Input and int. bus voltage
potential isolation 2 between	SC output and int. bus voltage
type of potential isolation 1	Basic insulation
type of potential isolation 2	Basic insulation
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	2
s/c output short circuit proof	Yes
