Pilz

773713

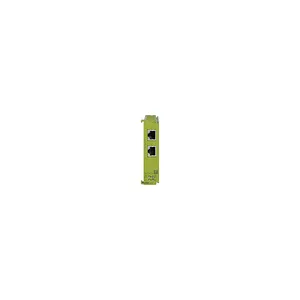

Name: 773713
Brand: Pilz
Availability: PreOrder

Product type: PNOZ mc2.1p EtherCAT 2

Datasheet

Description

PNOZmulti Classic, communication module, standard, fieldbus EtherCAT, supports CANopen over EtherCAT, protocol CiA DS-301 V4.0.2, 2 RJ45 ports, transmission rate 100 MBit/s, 24/128 Bit virtual inputs, 24/128 Bit virtual outputs.

Small controllers PNOZmulti
Safety systems PNOZmulti Classic
PNOZmulti - communication modules
PNOZmulti - communication modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 773713.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.114 KG / psc.
Commodity number	85176200
Country of origin	DE
Dimensions (WxHxD)	22.5x94x114 mm
EAN code
Product group	7024
approval	CE UKCA cULus Listed EAC (Eurasian)
etim version	ETIM-7.0
gross weight	132 g
test voltage	500 V AC
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
purpose of uint1	Module supply
mounting position	horizontal on top hat rail
fieldbus interface	EtherCAT
ambient temperature	0 °C
connection fieldbus	RJ45
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
fieldbus device type	Slave
overvoltage category	III
voltage type of uint1	DC
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242208
galv. isolation fieldbus	Yes
protection type standard	EN 60529
name of fieldbus protocol	CANopen over EtherCAT
tolerance of uint. module	-2 %/+2 %
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
source of internal voltage	Via base unit
ambient temperature standard	EN 60068-2-14
housing material front plate	ABS UL 94 V0
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30
selectable transmission rates	100 MBit/s
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
pollution degree clear.&creep.	2
