Pilz

773813

Name: 773813
Brand: Pilz
Availability: PreOrder

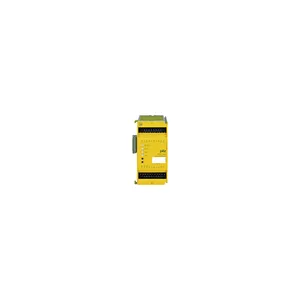

Product type: PNOZ ma1p coated version

Datasheet

Description

PNOZmulti Classic, expansion module, failsafe, 2 analogue inputs, - 10.24 - 10.23 V, dual-pole, differential input, resolution 13 Bit, 0 - 25.59 mA, dual-pole, differential input, resolution 12 Bit, range monitoring, threshold value monitoring, for increasedenvironmental conditions.

Small controllers PNOZmulti
Safety systems PNOZmulti Classic
PNOZmulti - I/O modules
PNOZmulti - safe I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 773813.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.196 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	45x94x121 mm
EAN code
Product group	7018
approval	CE UKCA cULus Listed TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	215 g
purpose of u1	Module supply
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
mounting position	horizontal on top hat rail
supply voltage (v)	24 V
ambient temperature	-25 °C
broad band noise to	EN 60068-2-64
connection terminal	Screw terminal Spring-loaded terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
overvoltage category	III
power consumption dc	2 W
type of input filter	RC filter 1st order
acc. shock to standard1	15g
condensation permitted?	Briefly
type of analogue inputs	Current Voltage
eclass reference feature	27242201
flex. cond. c/s awg info	24 - 16 AWG
protection type standard	EN 60529
number of analogue inputs	2
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
ambient temperature standard	EN 60068-2-14
housing material front plate	ABS UL 94 V0
res. anal. i/p i-measurement	12 Bit
storage temperature standard	EN 60068-2-1/-2
value least signif. bit u-me	5 mV
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
pollution degree clear.&creep.	2
potential isol. analogue input	No
resol. anal. i/p u-measurement	13 Bit (12 Bit signed)
