Pilz

773826

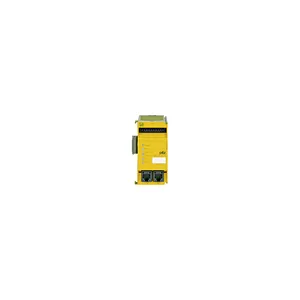

Name: 773826
Brand: Pilz
Availability: PreOrder

Product type: PNOZ ms3p TTL

Datasheet

Description

PNOZmulti Classic, expansion module, failsafe, motion monitoring of 2 axes, 2 incremental encoders, differential input, Sin/Cos, TTL(RS422), RJ45 female connector, 8-pin, adapter cable as an accessory.

Small controllers PNOZmulti
Safety systems PNOZmulti Classic
PNOZmulti - I/O modules
PNOZmulti - safe I/O modules

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 773826.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.22 KG / psc.
Commodity number	85364190
Country of origin	DE
Dimensions (WxHxD)	45x94x121 mm
EAN code
Product group	7018
approval	CE UKCA cULus Listed EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	290 g
eclass version	ECLASS-9.1
humidity rating	93 % r. h. at 40 °C
purpose of uint1	Module supply
reach compliance	contains min. 1 SVHC-substance
mounting position	horizontal on top hat rail
ambient temperature	0 °C
connection terminal	Screw terminal Spring-loaded terminal
din-rail dimensions	35 x 7.5 EN 50022
emc to standard ...	EN 61131-2
etim reference group	EG000024
overvoltage category	III
voltage type of uint1	DC
acc. shock to standard1	15g
condensation permitted?	Not permitted
eclass reference feature	27242205
flex. cond. c/s awg info	24 - 16 AWG
protection type standard	EN 60529
tolerance of uint. module	-2 %/+2 %
vibration to standard ...	EN 60068-2-6
perm. operating height asl	2000 m
source of internal voltage	Via base unit
reaction time at f < 100 hz	10 ms + 1/f
ambient temperature standard	EN 60068-2-14
housing material front plate	ABS UL 94 V0
storage temperature standard	EN 60068-2-1/-2
clearance & creepage dist. to	EN 61131-2
climatic suitability standard	EN 60068-2-30 EN 60068-2-78
number of incremental encoder	2
prog. mon. fun. w hyst. incr.	0.2 Hz - 500 kHz
weee classifikation (08/2018)	5 devices (feed size < 50cm)
connection (increment encoder)	8-pin RJ-45 female connector
housing material lower section	PPO UL 94 V0
phase pos. diff.sign. inc.enc.	90° ±30°
pollution degree clear.&creep.	2
prog. mon. fun. wo hyst. incr.	0.1 Hz - 500 kHz
