Pilz

773855

Name: 773855
Brand: Pilz
Availability: PreOrder

Product type: PNOZ msi11p adapter cable 1,5m

Datasheet

Description

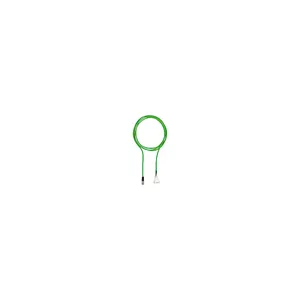

Adapter cable speed monitor, RJ45 connector and open end, for PNOZ msXp and PNOZ s30, 1.5 m.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 773855.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.062 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7013
cas no.	7439-92-1
approval	-
etim version	ETIM-7.0
gross weight	72 g
length cable	1.5 m
shielding k1	yes
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	yes
connector type 1	8-pin RJ45 male connector
reach compliance	contains min. 1 SVHC-substance
ambient temperature	0 - 60 °C
etim reference group	EG000026
number of conductors	8
approvals for cable k1	UL AWM-Style 20233
%-part of the pollutant	> 0,1
condensation permitted?	Not permitted
conductor cross section	0.14 mm²
eclass reference feature	27060313
approvals for connector 1	UL94 V-0
colour cable insulation 1	Green, similar to RAL6018
reach included substances	Lead
shape of connector type 1	straight
contact surfaces material 1	Au
bend radius (when laying) k1	8 x Ø
rohs except.s acc. to direct.	6c
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	PUR
max. outside diameter cable k1	6 mm
trailing capability of cable 1	yes
