Pilz

773869

Name: 773869
Brand: Pilz
Availability: PreOrder

Product type: PNOZ msi13p Fanuc 20/20 2,5m

Datasheet

Description

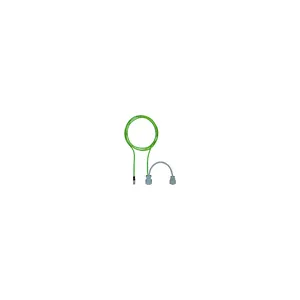

Adapter cable speed monitor, RJ45 connector and 20-pin encoder connection, for PNOZ msXp and PNOZ s30, 2.5 m, for FANUC.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 773869.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.152 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)	33.4x42x13.5 mm
EAN code
Product group	7013
approval	-
etim version	ETIM-7.0
gross weight	164 g
length cable	2.5 m
shielding k1	yes
shielding k2	Yes
cable type k1	Li9YC11Y
eclass version	ECLASS-9.1
housing colour	Grey
connector type 1	20-pin D-Sub female connector
connector type 2	20-pin D-Sub male connector
connector type 3	8-pin RJ45 male connector
housing material	ABS
cable material k2	Cu
ambient temperature	0 - 60 °C
etim reference group	EG000026
number of conductors	8
approvals for cable k1	UL AWM-Style 20233
conductor cross section	0.14 mm²
eclass reference feature	27060313
approvals for connector 1	UL94 V-0
approvals for connector 2	UL94 V-0
approvals for connector 3	UL94 V-0
colour cable insulation 1	Green, similar to RAL6018
shape of connector type 3	straight
bend radius (when laying) k1	8 x Ø
housing material connector 3	PBT
tolerance of cable length k1	+/- 0.15 m
separating layer bt. cores k2	No
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	PUR
material of cable insulation 2	PVC
max. outside diameter cable k1	6 mm
trailing capability of cable 1	yes
trailing capability of cable 2	No
