Pilz

773880

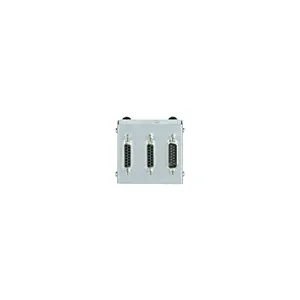

Product type: PNOZ msi b1 Box 15p

Description

Adapter box for speed monitoring module, PNOZmulti Classic, 3 x 15- pin D-Sub connector, 2 x socket, 1 x connector, can be clipped to top hat rails.

Small controllers PNOZmulti
Safety systems PNOZmulti Classic
PNOZmulti - base units
Accessories PNOZmulti

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 773880.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.134 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)	66x60x30 mm
EAN code
Product group	7013
cas no.	7439-92-1
approval	-
etim version	ETIM-7.0
gross weight	145 g
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
rohs conformity	yes
rohs exceptions	yes
connector type 1	15-pin D-Sub female connector
connector type 2	15-pin D-Sub female connector
connector type 3	15-pin D-Sub male connector
housing material	Hot dip galvanised steel
material of pins	Brass
reach compliance	contains min. 1 SVHC-substance
ambient temperature	0 - 60 °C
material of sockets	Brass
etim reference group	EG000026
%-part of the pollutant	> 0,1
condensation permitted?	Not permitted
eclass reference feature	27440108
approvals for connector 1	UL94 V-0
approvals for connector 2	UL94 V-0
approvals for connector 3	UL94 V-0
reach included substances	Lead
contact surfaces material 1	Au
housing material connector 3	PBT
rohs except.s acc. to direct.	6c
weee classifikation (08/2018)	5 devices (feed size < 50cm)
