Pilz

773951

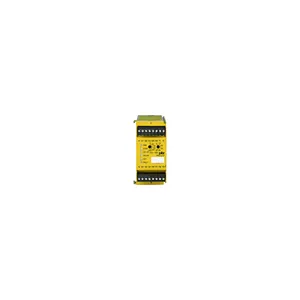

Name: 773951
Brand: Pilz
Availability: PreOrder

Product type: PNOZ p1vp 300s

Datasheet

Description

Safety relay (standalone), input: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 2 SC outputs,delayed control of connections is possible, automatic/monitored start, width: 45 mm, UB = 24 V DC, plug-in terminals of screw type, base unit PNOZpower modular safety system, delay 1.5 - 300 s.

Relay modules
Safety relays / protection relays
PNOZpower - safety relays
Monitoring of E-STOP, safety gates, light barriers

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 773951.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.355 KG / psc.
Commodity number	85364190
Country of origin	DE
Dimensions (WxHxD)	45x94x135 mm
EAN code
Product group	7005
approval	CE cULus Listed EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	360 g
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
number of inputs	2
reach compliance	contains min. 1 SVHC-substance
mounting position	horizontal on top hat rail
supply voltage (v)	24 V
ambient temperature	-10 - 55 °C
connection terminal	Screw terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61326-3-1
etim reference group	EG000019
overvoltage category	III
condensation permitted?	Not permitted
eclass reference feature	27371819
flex. cond. c/s awg info	24 - 12 AWG
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
climatic suitability to ...	EN 60068-2-78
housing material upper part	ABS UL 94 V0
number of semicond. outputs	2
tolerance ext. volt. dc s/c	-15 %/+10 %
time accuracy tv (end value)	+/-15 % +20 ms
clearance & creepage dist. to	EN 60947-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
pollution degree clear.&creep.	2
utilisation cat. to en 60947-1	DC-12
