Pilz

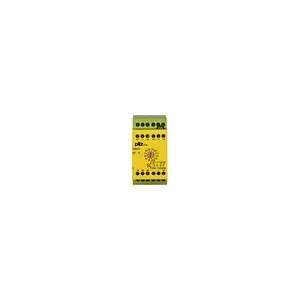

774023

Name: 774023
Brand: Pilz
Availability: PreOrder

Product type: PZA 300/110-120VAC 1n/o 2n/c

Datasheet

Description

Safety relay (standalone), inputs: 1-channel wiring, outputs: 1 N/O, 2 N/C, UB = 110 - 120 V AC, width: 45 mm, screwterminals integrated, delay-on energisation timer relay, monitoring feedback loop, energisation times 12 levels from 30 - 300 s.

Relay modules
Safety relays / protection relays
PNOZ X - safety relays
Time monitoring

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 774023.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.35 KG / psc.
Commodity number	85364900
Country of origin	DE
Dimensions (WxHxD)	45x87x121 mm
EAN code
Product group	7002
approval	CE CCC cULus Listed EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	360 g
tolerance tv	-15% / +15% +50 ms
eclass version	ECLASS-9.1
terminal style	fixed
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
selectable times	90 s 50 s 120 s 40 s 30 s 300 s 210 s 270 s 150 s 180 s 240 s 70 s
mounting position	any
supply voltage (v)	110 - 120 V
ambient temperature	-10 - 55 °C
connection terminal	Screw terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61326-3-1
repetition accuracy	2 %
etim reference group	EG000019
overvoltage category	III / II
power consumption ac	4.5 VA
relay contact material	AgSnO2
condensation permitted?	Not permitted
min. delay time formula	tv - 15 %
eclass reference feature	27371605
flex. cond. c/s awg info	24 - 10 AWG
voltage ac1 safety cont.	240 V
voltage dc1 safety cont.	24 V
safety contacts: ac at ul	240 VAC G. P.
type of supply voltage u1	AC
vibration to standard ...	EN 60068-2-6
voltage ac15 safety cont.	230 V
voltage dc13 safety cont.	24 V
climatic suitability to ...	EN 60068-2-78
housing material upper part	PPO UL 94 V0
max. device circuit breaker	Max. conductor cross section
safety contacts: pilot duty	B300, R300
addit. contact details relay	+ 0.2 µm Au
housing material front plate	ABS UL 94 V0
number of del. aux. contacts	2
clearance & creepage dist. to	EN 60947-1
max. current ac1 safety cont.	6 A
max. current dc1 safety cont.	6 A
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
max. current ac15 safety cont.	4 A
pollution degree clear.&creep.	2
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
