Pilz

774260

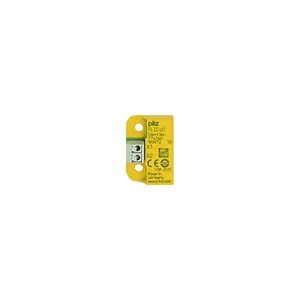

Name: 774260
Brand: Pilz
Availability: PreOrder

Product type: PLID d1

Datasheet

Description

PNOZ, accessories, safe line inspection of a 2-wire line for short circuit, short across contacts and open circuit, test pulse signalinput for evaluation device PNOZ e8.1p, manual test with 1N/O contact, continuous test with 1N/C, maximum cable length 3000 m, version with screw terminal.

Relay modules
Line monitoring devices
PLIDdys - safe line monitoring devices
PLIDdys

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 774260.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.01 KG / psc.
Commodity number	85389091
Country of origin	DE
Dimensions (WxHxD)	26x36x12.1 mm
EAN code
Product group	7085
approval	CE UKCA cULus Listed TÜV
etim version	ETIM-7.0
gross weight	29 g
eclass version	ECLASS-9.1
terminal style	fixed
humidity rating	93 % r. h. at 40 °C
max. cable length	3000 m
mounting position	any
ambient temperature	-30 - 70 °C
connection terminal	Screw terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61000-6-4
overvoltage category	III
condensation permitted?	Not permitted
eclass reference feature	27141990
flex. cond. c/s awg info	22 - 14 AWG
vibration to standard ...	EN 60068-2-6
source of internal voltage	Via evaluation device
climatic suitability to ...	EN 60068-2-78
clearance & creepage dist. to	EN 60947-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PC
pollution degree clear.&creep.	2
