Pilz

774731

Name: 774731
Brand: Pilz
Availability: PreOrder

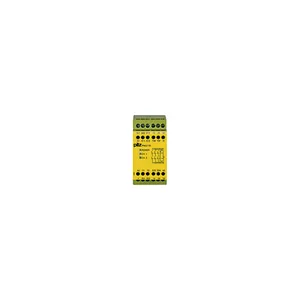

Product type: PNOZ X4 24VAC 3n/o 1n/c

Datasheet

Description

Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 3 N/O, 1 N/C, automatic/manual/monitored start, UB = 24 V AC, width: 45 mm, screw terminals integrated, monitoring of E-STOP, safety gates, light curtain.

Relay modules
Safety relays / protection relays
PNOZ X - safety relays
Monitoring of E-STOP, safety gates, light barriers

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 774731.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.37 KG / psc.
Commodity number	85364190
Country of origin	FR
Dimensions (WxHxD)	45x87x121 mm
EAN code
Product group	7002
approval	CCC CE UKCA cULus Listed TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	380 g
eclass version	ECLASS-9.1
terminal style	fixed
humidity rating	93 % r. h. at 40 °C
number of inputs	2
mounting position	any
supply voltage (v)	24 V
ambient temperature	-10 - 55 °C
connection terminal	Screw terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61326-3-1
etim reference group	EG000019
overvoltage category	III / II
power consumption ac	5 VA
relay contact material	AgSnO2
condensation permitted?	Not permitted
eclass reference feature	27371819
flex. cond. c/s awg info	24 - 10 AWG
voltage ac1 safety cont.	240 V
voltage dc1 safety cont.	24 V
safety contacts: ac at ul	240 VAC G. P.
type of supply voltage u1	AC
vibration to standard ...	EN 60068-2-6
voltage ac15 safety cont.	230 V
voltage dc13 safety cont.	24 V
climatic suitability to ...	EN 60068-2-78
housing material upper part	PPO UL 94 V0
number of semicond. outputs	0
safety contacts: pilot duty	B300, R300
addit. contact details relay	+ 0.2 µm Au
housing material front plate	ABS UL 94 V0
clearance & creepage dist. to	EN 60947-1
max. current ac1 safety cont.	8 A
max. current dc1 safety cont.	8 A
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
max. current ac15 safety cont.	5 A
pollution degree clear.&creep.	2
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
