Pilz

777581

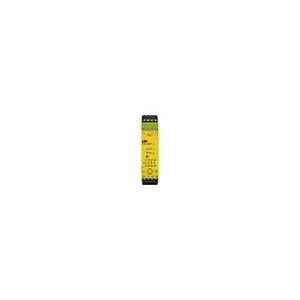

Product type: PZE X4VP 1/24VDC 4n/o fix

Description

Contact expansion, inputs: 1-channel wiring, outputs: 4 N/O t-d,(t= 1 s fixed), UB = 24 V DC, width: 22.5 mm plug-in terminals of screw type, contact block for contact expansion in connection with safety-related control components.
  • Relay modules
  • Safety relays / protection relays
  • PNOZ X - safety relays
  • Contact expansions
Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 777581.
  • ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.19 KG / psc.
Commodity number85364190
Country of originFR
Dimensions (WxHxD)22.5x94x121 mm
EAN code
Product group7002
approvalCCC CE cULus Listed TÜV EAC (Eurasian)
etim versionETIM-7.0
gross weight200 g
tolerance tv-50 %/+50 %
eclass versionECLASS-9.1
terminal styleplug-in
humidity rating93 % r. h. at 40 °C
number of inputs1
mounting positionany
supply voltage (v)24 V
ambient temperature-10 - 55 °C
connection terminalScrew terminal
emc to standard ...EN 60947-5-1 EN 61000-6-2 EN 61326-3-1
etim reference groupEG000019
overvoltage categoryIII / II
power consumption dc2.5 W
relay contact materialAgCuNi
condensation permitted?Not permitted
eclass reference feature27371819
flex. cond. c/s awg info24 - 12 AWG
safety contacts: ac at ul250 VAC G.U. (same polarity)
type of supply voltage u1DC
vibration to standard ...EN 60068-2-6
climatic suitability to ...EN 60068-2-78
housing material upper partPPO UL 94 V0
number of semicond. outputs0
safety contacts: pilot dutyB300, R300
addit. contact details relay+ 0.2 µm Au
housing material front plateABS UL 94 V0
clearance & creepage dist. toEN 60947-1
weee classifikation (08/2018)5 devices (feed size < 50cm)
housing material lower sectionPPO UL 94 V0
pollution degree clear.&creep.2
utilisation cat. ac/dc1 stand.EN 60947-4-1
utilisation cat. ac15/dc13sta.EN 60947-5-1
