Pilz

784135

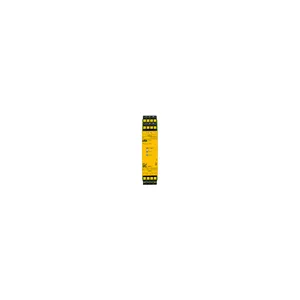

Name: 784135
Brand: Pilz
Availability: PreOrder

Product type: PNOZ e2.2p C 24VDC 2so

Datasheet

Description

Safety relay (standalone), inputs: On the basis of the requirement class III A in accordance with EN 574, outputs: 2 safetyoutputs + 1 auxiliary output of SC type, automatic start, UB = 24 V DC, width: 22.5 mm, plug-in spring-loaded terminals, electronic two-hand safety relay.

Relay modules
Safety relays / protection relays
PNOZelog - safety relays
Two-hand monitoring

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 784135.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.13 KG / psc.
Commodity number	85365019
Country of origin	DE
Dimensions (WxHxD)	22.5x101x121 mm
EAN code
Product group	7004
approval	CE UKCA cULus Listed KOSHA EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	145 g
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
mounting position	any
supply voltage (v)	24 V
ambient temperature	-10 - 55 °C
connection terminal	Spring-loaded terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61326-3-1 EN 61000-6-4
etim reference group	EG000019
overvoltage category	III
condensation permitted?	Not permitted
type of two-hand device	III A
eclass reference feature	27371821
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
type of two-hand device to	EN 574
climatic suitability to ...	EN 60068-2-78
max. device circuit breaker	6 A slow / 10 A quick
housing material front plate	ABS UL 94 V0
clearance & creepage dist. to	EN 60947-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
pollution degree clear.&creep.	2
utilisation cat. to en 60947-1	DC-12
