Pilz

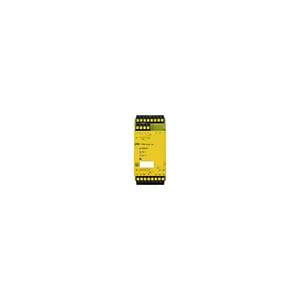

784193

Name: 784193
Brand: Pilz
Availability: PreOrder

Product type: PNOZ e6vp C 24VDC 4n/o 1so 1so t

Datasheet

Description

Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 2 safetyoutputs + 1 auxiliary outputs of SC type, 4 N/O, time-delayed, automatic/monitored start, UB = 24 V DC, width 45 mm, plug-in spring-loaded terminals, connection of several devices, E-STOP, safety gate monitor.

Relay modules
Safety relays / protection relays
PNOZelog - safety relays
Monitoring of E-STOP, safety gates, light barriers

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 784193.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.28 KG / psc.
Commodity number	85364190
Country of origin	DE
Dimensions (WxHxD)	45x101x121 mm
EAN code
Product group	7004
approval	CCC CE UKCA cULus Listed KOSHA EAC (Eurasian) TÜV
etim version	ETIM-7.0
gross weight	300 g
tolerance tv	+/-10 % + 40 ms
eclass version	ECLASS-9.1
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
reach compliance	contains min. 1 SVHC-substance
selectable times	7 s 3 s 5 s 0.15 s 1 s 0 s 0.5 s 10 s 2 s
mounting position	any
supply voltage (v)	24 V
ambient temperature	-10 - 55 °C
connection terminal	Spring-loaded terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61000-6-4 EN 61326-3-1
repetition accuracy	3 %
etim reference group	EG000019
overvoltage category	III
relay contact material	AgCuNi
condensation permitted?	Not permitted
eclass reference feature	27371819
voltage ac1 safety cont.	240 V
voltage dc1 safety cont.	24 V
safety contacts: ac at ul	250 VAC G.U. (same polarity)
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
voltage ac15 safety cont.	230 V
voltage dc13 safety cont.	24 V
climatic suitability to ...	EN 60068-2-78
max. device circuit breaker	6 A slow / 10 A quick
safety contacts: pilot duty	R300 B300
addit. contact details relay	+ 0.2 µm Au
housing material front plate	ABS UL 94 V0
clearance & creepage dist. to	EN 60947-1
max. current ac1 safety cont.	6 A
max. current dc1 safety cont.	6 A
weee classifikation (08/2018)	5 devices (feed size < 50cm)
max. current ac15 safety cont.	3 A
pollution degree clear.&creep.	2
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
utilisation cat. to en 60947-1	DC-12
