Pilz

787548

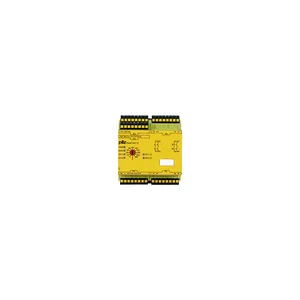

Product type: PNOZ XV2.1P C 300/24-240VACDC 2n/o 2n/o

Description

Safety relay (standalone), inputs: 1/2-channel wiring with/without detection of shorts across contacts, outputs: 2 N/O, 1 N/Ot-d (t = 0.3 - 300 s), automatic/monitored start, UB = 24 - 240 V AC/DC, width: 90 mm, plug-in spring-loaded terminals, monitoring of E-STOP, safety gates. This product has been discontinued. The following products are fully compatible in function: 750105 751105 750135 751135 However, it should be checked for the respective application whether all necessary framework conditions and parameters are also fulfilled for the intended use.
  • Relay modules
  • Safety relays / protection relays
  • PNOZ X - safety relays
  • Time monitoring
Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 787548.
  • ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight0.515 KG / psc.
Commodity number85364900
Country of originFR
Dimensions (WxHxD)90x101x121 mm
EAN code
Product group7002
approvalCCC CE cULus Listed EAC (Eurasian) TÜV
etim versionETIM-7.0
gross weight525 g
tolerance tv-15 %/+15 % +50 ms
eclass versionECLASS-9.1
terminal styleplug-in
humidity rating93 % r. h. at 40 °C
number of inputs2
reach compliancecontains min. 1 SVHC-substance
selectable times80 s 60 s 20 s 100 s 0.3 s 40 s 5 s 200 s 300 s 150 s 250 s 10 s
mounting positionany
supply voltage (v)24 - 240 V
ambient temperature-10 - 55 °C
connection terminalSpring-loaded terminal
emc to standard ...EN 60947-5-1 EN 61000-6-2 EN 61000-6-4 EN 61326-3-1
repetition accuracy2 %
etim reference groupEG000019
overvoltage categoryIII / II
power consumption ac8.5 VA
power consumption dc5 W
relay contact materialAgSnO2
condensation permitted?Not permitted
eclass reference feature27371819
voltage ac1 safety cont.240 V
voltage dc1 safety cont.24 V
safety contacts: ac at ul240 VAC G. P.
type of supply voltage u1AC/DC
vibration to standard ...EN 60068-2-6
voltage ac15 safety cont.230 V
voltage dc13 safety cont.24 V
climatic suitability to ...EN 60068-2-78
housing material upper partPPO UL 94 V0
number of semicond. outputs0
safety contacts: pilot dutyC300, R300
addit. contact details relay+ 0.2 µm Au
housing material front plateABS UL 94 V0
clearance & creepage dist. toEN 60947-1
max. current ac1 safety cont.8 A
max. current dc1 safety cont.8 A
weee classifikation (08/2018)5 devices (feed size < 50cm)
housing material lower sectionPPO UL 94 V0
max. current ac15 safety cont.5 A
pollution degree clear.&creep.2
utilisation cat. ac/dc1 stand.EN 60947-4-1
utilisation cat. ac15/dc13sta.EN 60947-5-1
