Pilz

787587

Name: 787587
Brand: Pilz
Availability: PreOrder

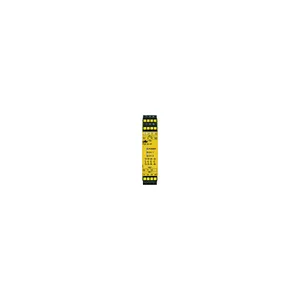

Product type: PZE X4.1P C 24VDC 4n/o

Datasheet

Description

Contact expansion, inputs: 1/2-channel wiring, outputs: 4 N/O, UB = 24 V DC, width 22.5 mm, plug-in spring-loaded terminals, contactblock for contact expansion in connection with safety-related control components.

Relay modules
Safety relays / protection relays
PNOZ X - safety relays
Contact expansions

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 787587.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.185 KG / psc.
Commodity number	85364190
Country of origin	FR
Dimensions (WxHxD)	22.5x101x121 mm
EAN code
Product group	7002
cas no.	7439-92-1 1317-36-8
approval	CCC CE cULus Listed TÜV EAC (Eurasian)
etim version	ETIM-7.0
gross weight	195 g
eclass version	ECLASS-9.1
rohs directive	2011/65/EU 2015/863/EU
terminal style	plug-in
humidity rating	93 % r. h. at 40 °C
rohs conformity	yes
rohs exceptions	yes
number of inputs	2
reach compliance	contains min. 1 SVHC-substance
mounting position	any
supply voltage (v)	24 V
ambient temperature	-10 - 55 °C
connection terminal	Spring-loaded terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2 EN 61326-3-1
etim reference group	EG000019
overvoltage category	III
power consumption dc	2.5 W
relay contact material	AgCuNi
%-part of the pollutant	> 0,1%
condensation permitted?	Not permitted
eclass reference feature	27371819
voltage ac1 safety cont.	240 V
voltage dc1 safety cont.	24 V
reach included substances	Lead Lead oxide
safety contacts: ac at ul	250 VAC G.U. (same polarity)
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
voltage ac15 safety cont.	230 V
voltage dc13 safety cont.	24 V
climatic suitability to ...	EN 60068-2-78
housing material upper part	PPO UL 94 V0
number of semicond. outputs	0
safety contacts: pilot duty	B300, R300
addit. contact details relay	+ 0.2 µm Au
housing material front plate	ABS UL 94 V0
clearance & creepage dist. to	EN 60947-1
max. current ac1 safety cont.	6 A
max. current dc1 safety cont.	6 A
rohs except.s acc. to direct.	6c 7c I
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
max. current ac15 safety cont.	3 A
pollution degree clear.&creep.	2
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
