8176280

Name: 8176280
Brand: Pilz
Availability: PreOrder

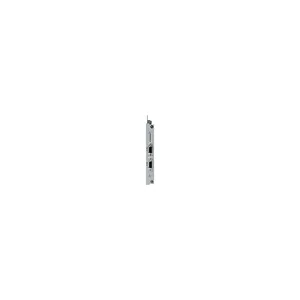

Product type: PMC Erweiterungskarte Profibus DP Slave

Description

Card can be used in PMCtendo DD5 & PMCprotego.

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 8176280.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.09 KG / psc.
Commodity number	85439000
Country of origin	AT
Dimensions (WxHxD)
EAN code
Product group	7051
approval	CE
etim version	ETIM-7.0
gross weight	340 g
profibus type	Slave
eclass version	ECLASS-9.1
rohs conformity	yes
reach compliance	Contains no SVHC substances
ambient temperature	0 - 40 °C
name profibus protocol	PPO Type 2
eclass reference feature	27023291
profibus manufacturer id	045Dh
profibus operating modes	AutoBaud
housing material front plate	Aluminium
name description file profib	prt_045d.gsd
weee classifikation (08/2018)	5 devices (feed size < 50cm)
connector type profibus inter.	9-pin D-Sub female connector
perm. profib. statn. addresses	1 ... 127d
setting profibus station addr.	Software
