Pilz

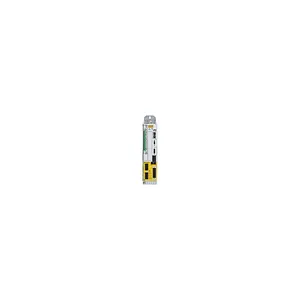

8176544

Product type: PMCprotego D.12/100/0/0/2/208-480VAC

Description

Technical data at 3 x 400 V AC: Continuous output current: 12 A; Imax (5 s) = 24 A; Power consumption in S1 mode: 9 kVA Integral brake resistor Further hardware options: Expansion card I/O.
  • Drive technology
  • Servo amplifier
  • PMCprotego D - servo drives
  • PMCprotego D
Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com
Payment
Bank TransferVisaMastercardPayPal
Worldwide shipping
DHLUnited Parcel ServiceFedEx ExpressTNT ExpressDB Schenker
Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin
Infoindividually for each client according to INCOM TERMS 2022
  • ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 8176544.
  • ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.
Multiples Of: 1
Product Specifications
Product AttributeAttribute Value
Weight4.5 KG / psc.
Commodity number85044088
Country of originAT
Dimensions (WxHxD)70x345x243 mm
EAN code
Product group7074
approvalUL Listed CE TÜV EAC (Eurasian)
cooling typeBuilt-on fan
etim versionETIM-7.0
gross weight5600 g
purpose of u2supply
eclass versionECLASS-9.1
humidity class1K3
noise emission65 dB (A)
power derating2.5 %/K
humidity rating85 % r. h.
rohs conformityyes
housing materialGalvanised steel
reach complianceContains no SVHC substances
mounting positionvertical
supply voltage (v)208 - 480 V
ambient temperature0 - 40 °C
emc to standard ...EN 61800-3
peak current for 2 s24 A
peak current for 5 s24 A
supply voltage 2 (v)24 V
number of sto-enables2
ambient temp. derating40 - 55 °C
purpose of phase rangeMains supply
condensation permitted?Not permitted
galv. isol. n/safe sc oYes
power derating per 100m1.5 %/100 m
tolerance u2 with brake+15 %
type of analogue inputsVoltage
eclass reference feature27023201
number of digital inputs4 - 6
protection type standardEN 60529
ambient temperature class1K4
number of analogue inputs2
signal range analog input-10 - 10 V
type of supply voltage u1AC
type of supply voltage u2DC
vibration to standard ...EN 60721-3-3
perm. operating height asl1000 m
potential isolation inputsyes
signal level at input at 0-3 - +5 VDC
storage temperature change20 K/h
supply voltage with phases3 x 208…3 x 480 V
tolerance u2 without brake+15 %
connector type rs rs232 i/f9-pin D-Sub male connector
cont outp. curr. at 3x230 v12 A
cont outp. curr. at 3x480 v12 A
number of auxiliary outputs2
number of rs 232 interfaces1
ambient temperature standardDIN EN 60721-3-3
connector type ethernet int.RJ45
cont. outp. curr. at 3x208 v12 A
max. switch-on frequency o/p30/h
number of canopen interfaces1
storage temperature standardDIN EN 60721-3-1
type of supply voltage rangeAC
u input to en 61131-2 type 124 V DC
climatic suitability standardDIN EN 60721-3-3
cont. out. current at 3x400 v12 A
pulse frequ. inverted rectif.8 kHz
resolution of analogue inputs16 Bit
v range at intermediate circ.900 V DC
weee classifikation (08/2018)5 devices (feed size < 50cm)
connector type encoder/incr.en15-pin D-Sub female connector
perm. op. height at 1.5% derat1000 - 2500 m ASL
