Pilz

8177264

Name: 8177264
Brand: Pilz
Availability: PreOrder

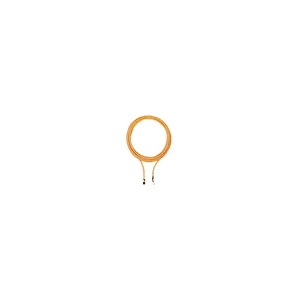

Product type: PMCcable M2/B1B5/020/1Q0/S1

Datasheet

Description

Power cable; Cable assembled on both sides Crimp connectors <> con.15 round connector 9-pin SpeedTec; No. of wires and cross section (4x1,0+1x (2x1,0)); suitable for PMCtendo DD5 and the motors PMCtendo SZ.3x; Length 20m.

Drive technology
Servo amplifier
PMCtendo DD - servo drives
Accessories PMCtendo DD

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 8177264.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	4.36 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7051
etim version	ETIM-7.0
gross weight	5010 g
length cable	20 m
shielding k1	yes
eclass version	ECLASS-9.1
connector type 1	9-pin M15 female connector
connector type 2	Crimp connector
ambient temperature	-20 - 80 °C
etim reference group	EG000026
type of shielding k1	Wire mesh
colour cable insulation 1	Orange
shape of connector type 1	straight
material shield surface k1	Sn
contact surfaces material 1	Au
contact surfaces material 2	Sn
cross section data cable k1	(4 x 1.00 +( 2 x 0.75)) mm²
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	PUR
max. outside diameter cable k1	11.2 - 11.8 mm
trailing capability of cable 1	yes
