Pilz

8177271

Name: 8177271
Brand: Pilz
Availability: PreOrder

Product type: PMCcable FD/D4B8/005/Q25/S1

Datasheet

Description

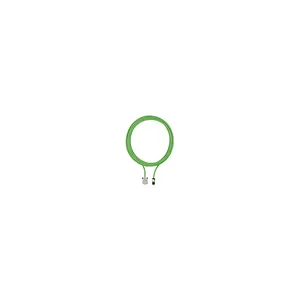

Feedback cable for EnDat 2.2; Cable assembled on both sides Sub-D15 connector <> con.15 round connector 12-pin SpringTec; suitable for all PMC servo controllers (DD5, protego) and the motors PMCtendo SZ.3x; Length 5 m.

Drive technology
Servo amplifier
PMCprotego D - servo drives
Accessories PMCprotego D

Contact Person
Thomas Hoffmann
+49 3091508245
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 8177271.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.465 KG / psc.
Commodity number	85444290
Country of origin	DE
Dimensions (WxHxD)
EAN code
Product group	7074
etim version	ETIM-7.0
gross weight	535 g
length cable	5 m
shielding k1	yes
eclass version	ECLASS-9.1
connector type 1	P 12-pin M15 female connector
connector type 2	15-pin D-Sub male connector
ambient temperature	-20 - 80 °C
etim reference group	EG000026
type of shielding k1	Wire mesh
colour cable insulation 1	Green
shape of connector type 1	straight
shape of connector type 2	straight
material shield surface k1	Sn
contact surfaces material 1	Au
contact surfaces material 2	Au
cross section data cable k1	(4 x 2 x 0.25) mm²
weee classifikation (08/2018)	5 devices (feed size < 50cm)
material of cable insulation 1	PUR
max. outside diameter cable k1	7.2 - 7.8 mm
trailing capability of cable 1	yes
