Pilz

840655

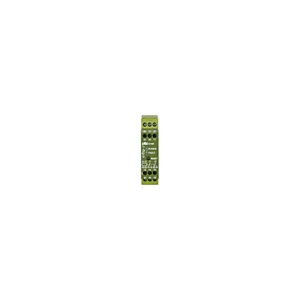

Name: 840655
Brand: Pilz
Availability: PreOrder

Product type: S1MO 240VAC 2c/o

Datasheet

Description

Thermistor monitoring relay, as a protection device from overheating of motors, generators, etc., 2 auxiliary contacts, 2 changeover contacts,width = 22.5 mm, UB = 240 V AC.

Relay modules
Monitoring relays / monitoring devices
PMDsrange - monitoring relays
PMDsrange

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 840655.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.165 KG / psc.
Commodity number	85364900
Country of origin	DE
Dimensions (WxHxD)	22.5x87x121 mm
EAN code
Product group	7007
approval	CE CCC UKCA cULus Listed
etim version	ETIM-7.0
gross weight	175 g
eclass version	ECLASS-9.1
terminal style	fixed
reach compliance	contains min. 1 SVHC-substance
mounting position	any
release value rab	1.8 kOhm, ±10 %
response value ran	3.6 kOhm, ±10 %
supply voltage (v)	240 V
ambient temperature	-10 - 55 °C
connection terminal	Screw terminal
emc to standard ...	EN 60947-5-1 EN 61000-6-2
etim reference group	EG000019
overvoltage category	III / II
power consumption ac	3.5 VA
relay contact material	AgCdO
condensation permitted?	Not permitted
eclass reference feature	27371810
flex. cond. c/s awg info	24 - 10 AWG
type of supply voltage u1	AC
vibration to standard ...	EN 60068-2-6
climatic suitability to ...	EN 60068-2-78
housing material upper part	PPO UL 94 V0
max. device circuit breaker	Max. conductor cross section
addit. contact details relay	+ 3.0 µm Au
housing material front plate	ABS UL 94 V0
clearance & creepage dist. to	EN 60947-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
pollution degree clear.&creep.	2
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
max.cold resistance rc at 20°c	1.5 kOhm
