Pilz

890020

Name: 890020
Brand: Pilz
Availability: PreOrder

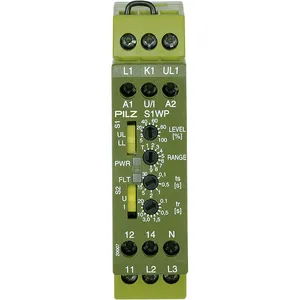

Product type: S1WP 9A 24VDC UM 0-415VAC/DC

Datasheet

Description

True power monitoring suitable for 1- and 3-phase supplies for frequency-controlled motors, 9 measuring ranges 0 - 1000 Hz, measuringvoltage 0 - 415 V AC/DC, 1 C/O output, 1 analogue output 0 - 10 V DC or 4 - 20 mA. Width 225 mm, UB = 24 V DC.

Relay modules
Monitoring relays / monitoring devices
PMDsrange - monitoring relays
PMDsrange

Contact Person
Thomas Hoffmann
+49 305 201 4443 ext. 1
sales@zwodltd.com

Payment

Worldwide shipping

Additional Information
Price: Please send request
Request Lead Time: ca. 1-2 Days
Delivery Time: By Agreement
Delivery Terms: FCA Berlin individually for each client according to INCOM TERMS 2022

ZWOD Vertriebs und Logistik GmbH specializes in hard-to-find parts. Please send request a quote and save on 890020.
ZWOD Vertriebs und Logistik GmbH carries 3973 items from Pilz.

Multiples Of: 1

Product Specifications

Product Attribute	Attribute Value
Weight	0.13 KG / psc.
Commodity number	90303330
Country of origin	FR
Dimensions (WxHxD)	22.5x87x121 mm
EAN code
Product group	7007
approval	CE CCC UKCA cULus Listed
etim version	ETIM-7.0
gross weight	140 g
eclass version	ECLASS-9.1
terminal style	fixed
mounting position	any
supply voltage (v)	24 V
ambient temperature	0 - 55 °C
connection terminal	Screw terminal
emc to standard ...	EN 61000-6-2 EN 61000-6-4
etim reference group	EG000026
overvoltage category	III
power consumption dc	2 W
relay contact material	AgCdO
condensation permitted?	Not permitted
eclass reference feature	27210127
flex. cond. c/s awg info	24 - 10 AWG
safety contacts: ac at ul	250 V AC
type of supply voltage u1	DC
vibration to standard ...	EN 60068-2-6
uout during generator mode	0 - -10 V
climatic suitability to ...	EN 60068-2-78
housing material upper part	PPO UL 94 V0
max. device circuit breaker	Max. conductor cross section
addit. contact details relay	+ 3.0 µm Au
freq. meas. range analog i/p	0 - 1000 Hz
housing material front plate	ABS UL 94 V0
i meas. range analogue input	9 A
u meas. range analogue input	0 - 415 V
clearance & creepage dist. to	EN 60947-1
weee classifikation (08/2018)	5 devices (feed size < 50cm)
housing material lower section	PPO UL 94 V0
pollution degree clear.&creep.	2
utilisation cat. ac/dc1 stand.	EN 60947-4-1
utilisation cat. ac15/dc13sta.	EN 60947-5-1
